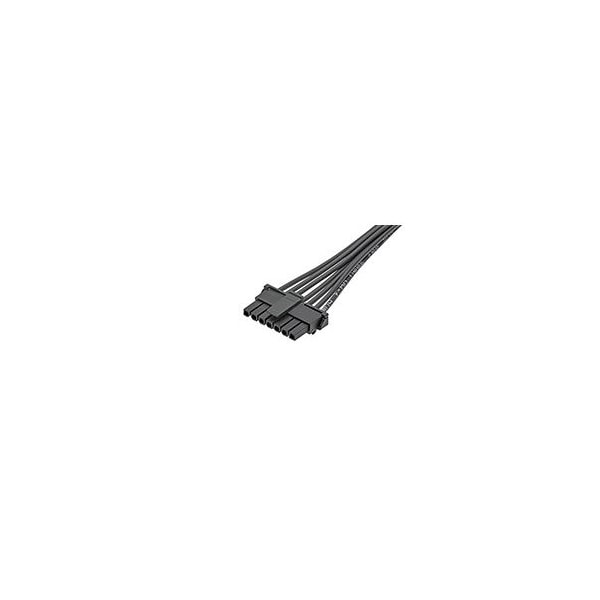

Dc Power Cords Micro-Fit Ots Cbl Assy 150Mm 7Ckt Blk

  • Mfr # 1451320701

  • Zoro # G005981462


product price: $4.15
/ea
Sold in multiples of 25 for $103.75

Key Features

Cable Length
150.00mm
Application
Power, Wire-to-Board, Wire-to-Wire
Wire Size AWG
20
Pitch - Mating Interface
3.00mm
Material - Resin
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1451320701
Zoro #
G005981462
UPC #
-
Country of Origin
India

Dimensions

Cable Length
150.00mm
Wire Size AWG
20
Wire Insulation Diameter
1.85mm

Details

Application
Power, Wire-to-Board, Wire-to-Wire
Pitch - Mating Interface
3.00mm
Material - Resin
Nylon
Material - Plating Mating
Tin
Wire/Cable Type
UL 1061
Color - Resin
Black
Number of Rows
1
Material - Plating Termination
Tin
Gender
Female-Female
Plating min - Mating
1.016µm
Termination Interface: Style
Crimp or Compression
Material - Metal
Phosphor Bronze
Plating min - Termination
1.016µm
Circuits (Loaded)
7
Current - Maximum per Contact
8.5A
Lock to Mating Part
Yes
Assembly Configuration
Dual Ended Connectors
Connector to Connector
Micro-Fit TPA Both Ends
Product Name
Micro-Fit TPA
Overmolded
No
Series
145132
Single Ended
No
