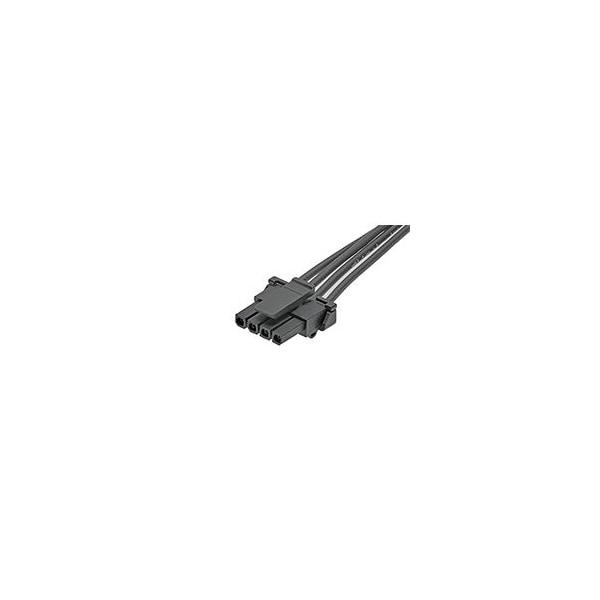

Dc Power Cords Micro-Fit Ots Cbl Assy 75Mm 4Ckt Blk

  • Mfr # 1451320400

  • Zoro # G605981268


product price: $3.29
/ea
Sold in multiples of 30 for $98.70

Key Features

Cable Length
75.00mm
Application
Power, Wire-to-Board, Wire-to-Wire
Type
Discrete Wire Assembly
Gender
Female-Female
Current - Maximum per Contact
8.5A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1451320400
Zoro #
G605981268
UPC #
-
Country of Origin
India

Dimensions

Cable Length
75.00mm
Wire Insulation Diameter
1.85mm
Wire Size AWG
20

Details

Application
Power, Wire-to-Board, Wire-to-Wire
Type
Discrete Wire Assembly
Gender
Female-Female
Current - Maximum per Contact
8.5A
Material - Plating Termination
Tin
Termination Interface: Style
Crimp or Compression
Plating min - Termination
1.016µm
Wire/Cable Type
UL 1061
Material - Metal
Phosphor Bronze
Color - Resin
Black
Pitch - Mating Interface
3.00mm
Material - Resin
Nylon
Circuits (Loaded)
4
Material - Plating Mating
Tin
Lock to Mating Part
Yes
Number of Rows
1
Plating min - Mating
1.016µm
Product Name
Micro-Fit TPA
Series
145132
Connector to Connector
Micro-Fit TPA Both Ends
Overmolded
No
Single Ended
No
Assembly Configuration
Dual Ended Connectors
Voltage - Maximum
300V AC/DC
