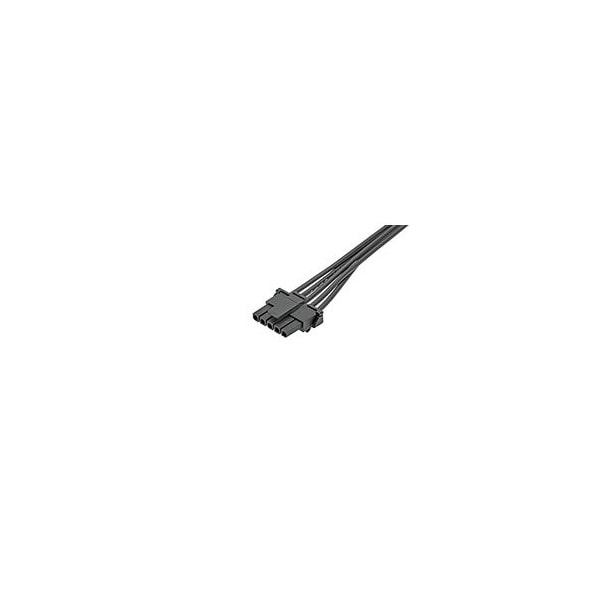

Dc Power Cords Micro-Fit Ots Cbl Assy 75Mm 5Ckt Blk

  • Mfr # 1451320500

  • Zoro # G105981263


product price: $3.29
/ea
Sold in multiples of 30 for $98.70

Key Features

Type
Discrete Wire Assembly
Application
Power, Wire-to-Board, Wire-to-Wire
Cable Length
75.00mm
Gender
Female-Female
Material - Resin
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1451320500
Zoro #
G105981263
UPC #
-
Country of Origin
India

Dimensions

Cable Length
75.00mm
Wire Size AWG
20
Wire Insulation Diameter
1.85mm

Details

Type
Discrete Wire Assembly
Application
Power, Wire-to-Board, Wire-to-Wire
Gender
Female-Female
Material - Resin
Nylon
Wire/Cable Type
UL 1061
Number of Rows
1
Color - Resin
Black
Termination Interface: Style
Crimp or Compression
Material - Plating Mating
Tin
Plating min - Mating
1.016µm
Circuits (Loaded)
5
Material - Metal
Phosphor Bronze
Lock to Mating Part
Yes
Material - Plating Termination
Tin
Current - Maximum per Contact
8.5A
Pitch - Mating Interface
3.00mm
Plating min - Termination
1.016µm
Assembly Configuration
Dual Ended Connectors
Overmolded
No
Connector to Connector
Micro-Fit TPA Both Ends
Voltage - Maximum
300V AC/DC
Single Ended
No
Series
145132
Product Name
Micro-Fit TPA
