  11. Dip Connector, 8 Contact(S), 2 Row(S), Female, Right Angle, 0.059 Inch Pitch, Solder Terminal,

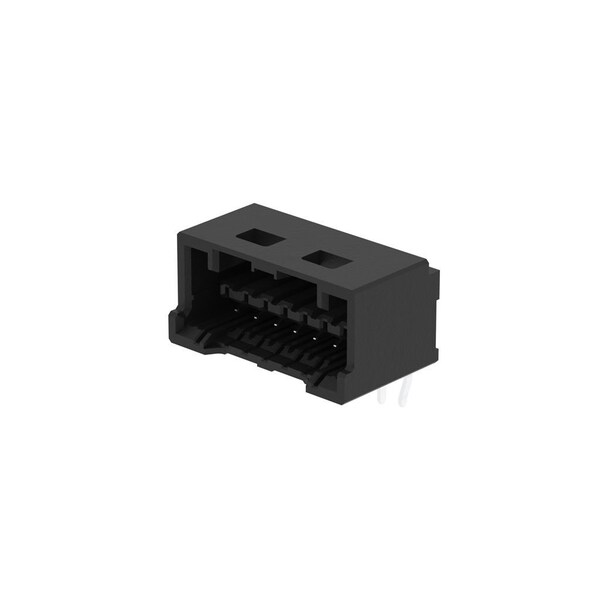

Molex Dip Connector, 8 Contact(S), 2 Row(S), Female, Right Angle, 0.059 Inch Pitch, Solder Terminal, 5031750801 - main

Dip Connector, 8 Contact(S), 2 Row(S), Female, Right Angle, 0.059 Inch Pitch, Solder Terminal,

  • Mfr # 5031750801

  • Zoro # G705980741

product price: $0.25
/ea
Sold in multiples of 332 for $83.00

Key Features

Max. Voltage
100V
Max. Temp.
105°C
Application
Signal, Wire-to-Board
Series
503175
Hole Center to Center
1.5 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5031750801
Zoro #
G705980741
UPC #
-
Country of Origin
Japan

Dimensions

PCB Thickness - Recommended
1.60mm, 2.40mm

Details

Max. Voltage
100V
Max. Temp.
105°C
Application
Signal, Wire-to-Board
Series
503175
Hole Center to Center
1.5 mm
Color
Black
Terminal Type
Through Hole
Material
Copper Alloy
Current Rating
2 A
Contact Finish
Tin Plated
Number of Rows
1
Terminal Finish
Tin Plated
Number of Contacts
8
PCB Locator
Yes
Lock to Mating Part
Yes
Durability (mating cycles max)
30
Material - Plating Termination
Tin
Circuits (Loaded)
8
Orientation
Right Angle
Component Type
PCB Receptacle
Product Name
CLIK-Mate
PCB Retention
Yes
Material - Plating Mating
Tin
Polarized to PCB
Yes
Polarized to Mating Part
Yes
Pitch - Mating Interface
1.50mm
Glow-Wire Capable
No
Temperature Range - Operating
-40° to +105°C
Stackable
No
Current - Maximum per Contact
2.0A
Guide to Mating Part
Yes
Keying to Mating Part
None

Description

Dip Connector, 8 Contact(S), 2 Row(S), Female, Right Angle, 0.059 Inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
