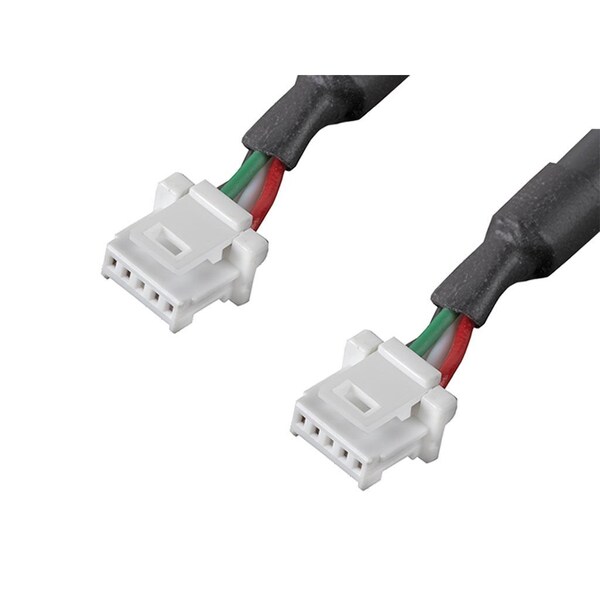

Expresslink 2.0 Pico-Clasp Female-To-Pico-Clasp Female Cable Assembly, Single Row, 150.00Mm Length

  • Mfr # 2151700601

  • Zoro # G605925934


product price:  $5.19
/ea
Sold in multiples of 15 for $77.85

Key Features

Cable Length
150.00mm
Series
215170
Application
Signal, Wire-to-Board, Wire-to-Wire
Material - Metal
Phosphor Bronze
Wire/Cable Type
UL 2725
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2151700601
Zoro #
G605925934
UPC #
-
Country of Origin
India

Dimensions

Cable Length
150.00mm
Wire Insulation Diameter
0.80mm max.
Wire Size AWG
28

Details

Series
215170
Application
Signal, Wire-to-Board, Wire-to-Wire
Material - Metal
Phosphor Bronze
Wire/Cable Type
UL 2725
Material - Resin
Nylon
Circuits (Loaded)
6
Color - Resin
White
Current - Maximum per Contact
1.5A
Material - Plating Mating
Gold
Pitch - Mating Interface
1.00mm
Material - Plating Termination
Tin
Number of Rows
1
Termination Interface: Style
Crimp or Compression
Plating min - Termination
0.914µm
Plating min - Mating
0.760µm
Gender
Female-Female
Voltage - Maximum
100V AC (RMS)/DC
Lock to Mating Part
Yes
Assembly Configuration
Dual Ended Connectors
Product Name
ExpressLink 2.0,Pico-Clasp
Connector to Connector
Pico-Clasp-to-Pico-Clasp
Single Ended
No
