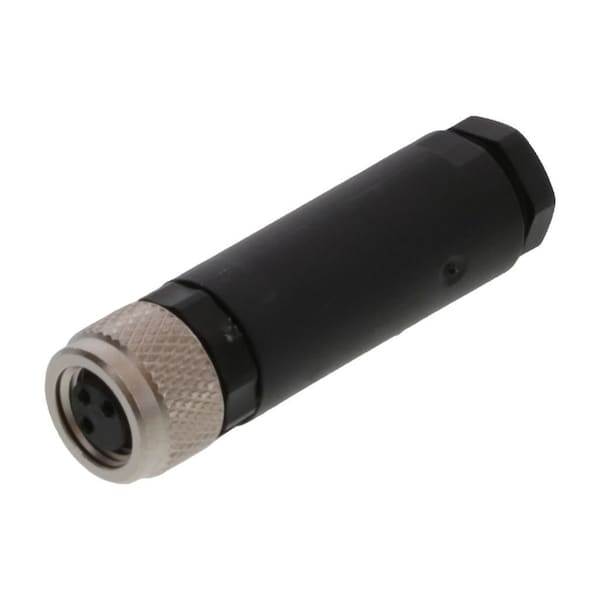

FA M8 3P FE STR SCR UNSH
Mfr # 1200910024
Zoro # G2081454
product price: $33.75
/eaSold in multiples of 3 for $101.25
Key Features
Coupling Type
Internal Thread
Material - Connector Body
PA
Gender
Female
Current - Maximum per Contact
4.0A
Poles
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1200910024
Zoro #
G2081454
UPC #
-
Country of Origin
Germany
Dimensions
Cable Diameter
3.50-5.00mm (.138-.197")
Wire Size AWG
20-26
Details
Coupling Type
Internal Thread
Material - Connector Body
PA
Gender
Female
Current - Maximum per Contact
4.0A
Poles
3
Keyway
None
Voltage - Maximum
60V
Material - Plating Mating
Gold
Orientation
Straight
Material - Coupling Nut
Zinc Die-Cast, Nickel-Plated
Temperature Range - Operating
-40°C to +85°C
Diagnostics / LEDs
No
Series
120091
Type
Field Attachable Connector
Product Name
Nano-Change (M8)
Material - Contact
Brass
IP Rating
IP67
Approvals
cCSAus certified
Description
