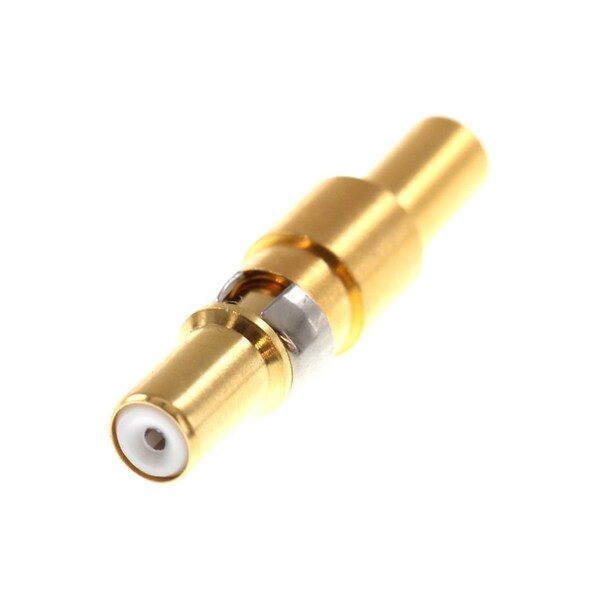

Fct Term Hfreq Str Crp Plg 50 Ohm
Mfr # 1731120050
Zoro # G905789632
product price:Â
$
8.15
/ea
Sold in multiples of 11 for $89.65
Key Features
Type
Mixed Layout
Maximum Voltage
30 V DC
Current
2 A
Minimum Operating Temperature
-55 Degrees
Maximum Operating Temperature
135 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1731120050
- Zoro #
- G905789632
- UPC #
- -
- Country of Origin
- Czechia
- Item
- Coaxial Connector
- Type
- Mixed Layout
- Maximum Voltage
- 30 V DC
- Current
- 2 A
- Minimum Operating Temperature
- -55 Degrees
- Maximum Operating Temperature
- 135 Degrees C
- Connector Type
- Male
- Series
- 173112
- Standards
- UL E152210
- Current Rating
- 2 A
- Max. Temp.
- 135°C
- Contact Type
- Coaxial
- Connection Material
- Copper Alloy
- Terminal Type
- Crimp
- Contact Finish
- Gold over Nickel
- Plating min - Mating
- 1.300µm
- Durability (mating cycles max)
- 200
- Wire/Cable Type
- RG-174U, RG-188AU, RG-316U
- Orientation
- Straight
- Temperature Range - Operating
- -55° to +135°C
- Product Name
- FCT Products
- Impedance
- 50Ω
- Current - Maximum per Contact
- 2.0A
- Termination Style
- Crimp
