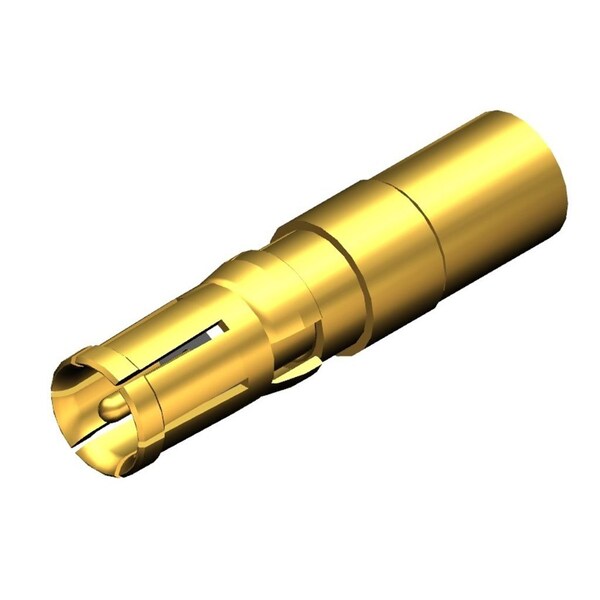

Fct Term Hfreq Str Crp Rcpt 75 Ohm
Mfr # 1731120181
Zoro # G205790406
product price:Â $8.19
/ea
Sold in multiples of 10 for $81.90
Key Features
Type
Mixed Layout
Maximum Voltage
30 V DC
Current
2 A
Minimum Operating Temperature
-55 Degrees
Maximum Operating Temperature
135 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1731120181
- Zoro #
- G205790406
- UPC #
- -
- Country of Origin
- Czechia
Dimensions
- Contact Plating Thickness
- 0.8 µm
Details
- Item
- FCT Products
- Type
- Mixed Layout
- Maximum Voltage
- 30 V DC
- Current
- 2 A
- Minimum Operating Temperature
- -55 Degrees
- Maximum Operating Temperature
- 135 Degrees C
- Connector Type
- Female
- Series
- 173112
- Standards
- UL E152210
- Connection Material
- Copper Alloy
- Max. Temp.
- 135°C
- Contact Type
- Coaxial
- Terminal Type
- Crimp
- Contact Finish
- Gold over Nickel
- Current Rating
- 2 A
- Product Name
- FCT Products
- Temperature Range - Operating
- -55° to +135°C
- Durability (mating cycles max)
- 200
- Impedance
- 75Ω
- Wire/Cable Type
- RG-180BU
- Current - Maximum per Contact
- 2.0A
- Plating min - Mating
- 1.300µm
- Orientation
- Straight
