  11. Ffc & Fpc Connectors 1.0Mm Ffc/Fpc 4 Ckt R/A Smt Zif
This item is Discontinued.

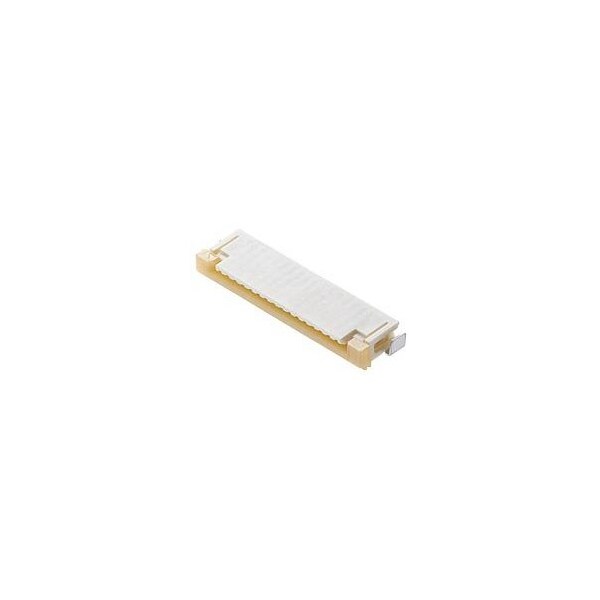

Molex Ffc & Fpc Connectors 1.0Mm Ffc/Fpc 4 Ckt R/A Smt Zif 522070485

Ffc & Fpc Connectors 1.0Mm Ffc/Fpc 4 Ckt R/A Smt Zif (Discontinued)

  • Mfr # 522070485
  • Zoro # G505914656
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
522070485
Zoro #
G505914656
UPC #
-
Country of Origin
Japan

Dimensions

Mated Height
2.70mm
PC Tail Length
2.00mm

Details

Series
52207
Orientation
Right Angle
Polarized to PCB
Yes
Circuits (Loaded)
4
Wire/Cable Type
FFC/FPC
Material - Plating Mating
Tin-Bismuth
Product Name
Easy-On
UL
E29179
PCB Retention
Yes
Temperature Range - Operating
-40° to +85°C
Voltage - Maximum
125V
Durability (mating cycles max)
30
PCB Mounting
Surface Mount
Material - Metal
Phosphor Bronze
Actuator Type
Slider
Flammability
94V-0
Stackable
No
Pitch - Mating Interface
1.00mm
PCB Locator
No
Current - Maximum per Contact
1.0A
CSA
LR19980
Contact Position
Top
Color - Resin
Natural
Material - Resin
Nylon
Material - Plating Termination
Tin-Bismuth
