  11. Ffc/Fpc Connector, 20 Contact(S), 1 Row(S), Female, Right Angle, 0.039 Inch Pitch, Solder Terminal,

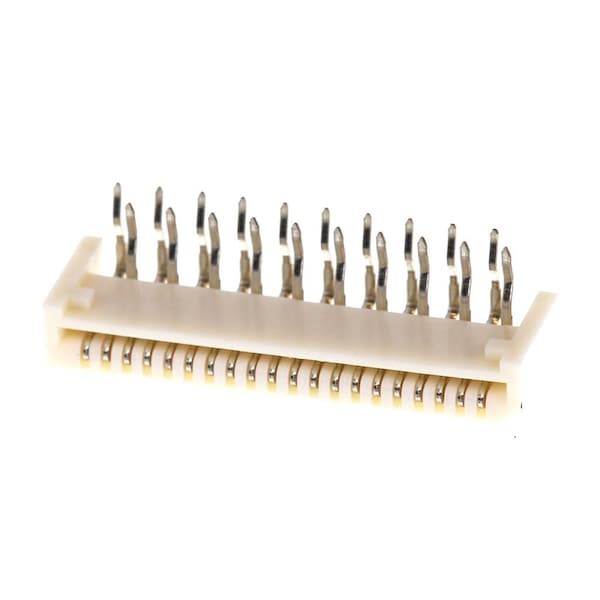

Molex Ffc/Fpc Connector, 20 Contact(S), 1 Row(S), Female, Right Angle, 0.039 Inch Pitch, Solder Terminal, 528072010 - main

Ffc/Fpc Connector, 20 Contact(S), 1 Row(S), Female, Right Angle, 0.039 Inch Pitch, Solder Terminal,

  • Mfr # 528072010

  • Zoro # G005914965

product price: $0.83
/ea
Sold in multiples of 150 for $124.50

Key Features

Max. Voltage
50V
Max. Temp.
80°C
Series
52807
Standards
UL E29179
Color
Natural
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
528072010
Zoro #
G005914965
UPC #
800753566859
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
0.914 µm
PC Tail Length
3.20mm
Mated Height
3.60mm

Details

Item
FFC FPC Connector
Max. Voltage
50V
Max. Temp.
80°C
Series
52807
Standards
UL E29179
Color
Natural
Material
High Temperature Thermoplastic
Sub-Category
FFC/FPC Connectors
Hole Center to Center
1 mm
Number of Contacts
20
Number of Rows
1
Contact Finish
Tin Plated
Current Rating
0.2 A; 0.4 A; 0.5 A
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Contact Position
Top
Wire/Cable Type
FFC/FPC
Material - Plating Termination
Tin
Flammability
94V-0
Temperature Range - Operating
-20° to +80°C
Polarized to PCB
Yes
Plating min - Mating
0.914µm
Material - Plating Mating
Tin
Circuits (Loaded)
20
Pitch - Mating Interface
1.00mm
Product Name
Easy-On
Material - Resin
High Temperature Thermoplastic
Material - Metal
Phosphor Bronze
Stackable
No
PCB Mounting
Through Hole - Kinked Pin
Orientation
Right Angle
Actuator Type
Non-ZIF
UL
E29179
Current - Maximum per Contact
0.2A, 0.4A, 0.5A
PCB Retention
None

Description

Ffc/Fpc Connector, 20 Contact(S), 1 Row(S), Female, Right Angle, 0.039 Inch Pitch, Solder Terminal, Locking
