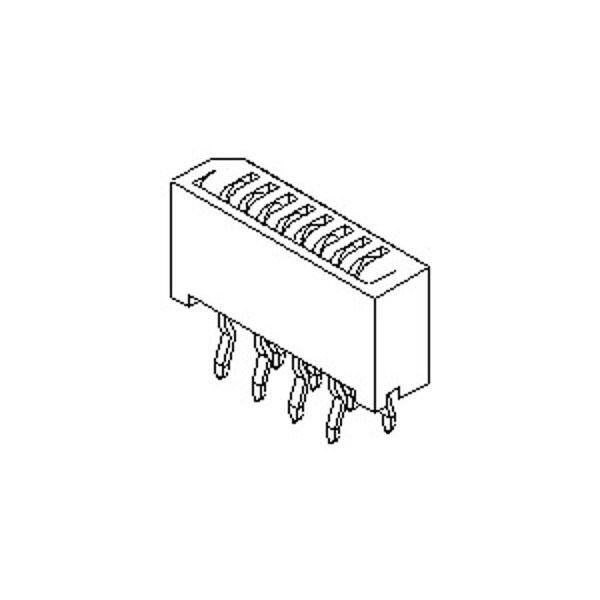

Molex Ffc/Fpc Connector, 23 Contact(S), 1 Row(S), Female, Straight, 0.039 Inch Pitch, Solder Terminal, 528062310 - main

Ffc/Fpc Connector, 23 Contact(S), 1 Row(S), Female, Straight, 0.039 Inch Pitch, Solder Terminal,

  • Mfr # 528062310

  • Zoro # G605915294

product price:  $0.40
/ea
Sold in multiples of 192 for $76.80

Key Features

Max. Voltage
50V AC/DC
Max. Temp.
80°C
Series
52806
Standards
UL E29179
Features
Surface Mount Compatible
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
528062310
Zoro #
G605915294
UPC #
800753360594
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
0.914 µm
PC Tail Length
3.20mm
PCB Thickness - Recommended
1.60mm
Mated Height
5.40mm

Details

Item
FFC FPC Connector
Max. Voltage
50V AC/DC
Max. Temp.
80°C
Series
52806
Standards
UL E29179
Features
Surface Mount Compatible
Material
High Temperature Thermoplastic
Hole Center to Center
1 mm
Sub-Category
FFC/FPC Connectors
Color
Natural
Contact Finish
Tin Plated
Flammability Rating
UL 94V-0
Number of Contacts
23
Current Rating
0.5 A
Number of Rows
1
Terminal Finish
Tin Plated
Polarized to PCB
No
PCB Mounting
Through Hole - Kinked Pin
Orientation
Vertical
Circuits (Loaded)
23
Pitch - Mating Interface
1.00mm
UL
E29179
Durability (mating cycles max)
10
Temperature Range - Operating
-20° to +80°C
Material - Plating Termination
Tin
Plating min - Mating
0.914µm
Actuator Type
Non-ZIF
Flammability
94V-0
Product Name
Easy-On
Material - Plating Mating
Tin
Voltage - Maximum
50V
Stackable
No
Material - Resin
High Temperature Thermoplastic
PCB Locator
No
Current - Maximum per Contact
0.5A
Wire/Cable Type
FFC/FPC
PCB Retention
None
Material - Metal
Phosphor Bronze

Description

Ffc/Fpc Connector, 23 Contact(S), 1 Row(S), Female, Straight, 0.039 Inch Pitch, Solder Terminal, Locking
