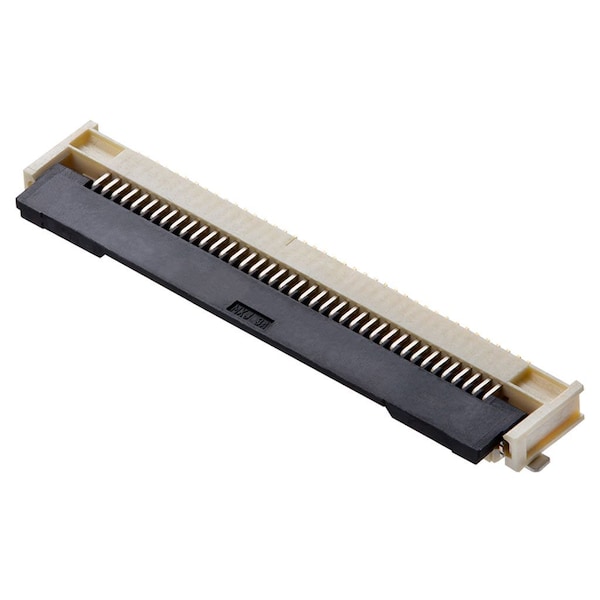

Ffc/Fpc Connector, 59 Contact(S), 1 Row(S), Female, Right Angle, 0.020 Inch Pitch, Surface Mount

Mfr # 5051105991
Zoro # G205913874

Sold in multiples of 3000 for $5,970.00

Key Features

Max. Temp.

105°C

Max. Voltage

50V AC/DC

Series

505110

Sub-Category

FFC/FPC Connectors

Material

Liquid Crystal Polymer

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 5051105991
Zoro #: G205913874
UPC #: 191128824590
Country of Origin: Japan

Dimensions

Contact Plating Thickness: 0.051 µm
Mated Height: 1.90mm

Details

Item: FFC FPC Connector
Max. Temp.: 105°C
Max. Voltage: 50V AC/DC
Series: 505110
Sub-Category: FFC/FPC Connectors
Material: Liquid Crystal Polymer
Color: Beige
Hole Center to Center: 0.5 mm
Number of Rows: 1
Terminal Finish: Gold over Nickel
Number of Contacts: 59
Contact Finish: Gold over Nickel
Current Rating: 0.5 A
Product Name: Easy-On
PCB Retention: Yes
Current - Maximum per Contact: 0.5A
Voltage - Maximum: 50V
Durability (mating cycles max): 20
Polarized to PCB: Yes
Actuator Type: Front Flip
Material - Resin: Liquid Crystal Polymer
Circuits (Loaded): 59
Contact Position: Bottom
Material - Metal: Phosphor Bronze
Plating min - Mating: 0.051µm
Material - Plating Termination: Gold
PCB Mounting: Surface Mount
Stackable: No
Pitch - Mating Interface: 0.50mm
PCB Locator: No
Orientation: Right Angle
Material - Plating Mating: Gold
Wire/Cable Type: FFC/FPC
Temperature Range - Operating: -40° to +105°C

Description

Ffc/Fpc Connector, 59 Contact(S), 1 Row(S), Female, Right Angle, 0.020 Inch Pitch, Surface Mount Terminal
