  11. Terminal Block, 10 A, 300 V, 14 AWG
This item is Discontinued.

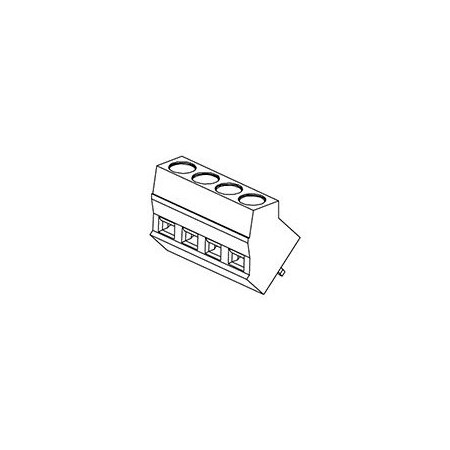

Molex Terminal Block, 10 A, 300 V, 14 AWG 395434304

Terminal Block, 10 A, 300 V, 14 AWG (Discontinued)

  • Mfr # 395434304
  • Zoro # G405798684
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
395434304
Zoro #
G405798684
UPC #
-
Country of Origin
China

Dimensions

For Minimum Wire Size
22 AWG
For Maximum Wire Size
14 AWG
PCB Thickness - Recommended
3.40mm
PC Tail Length
4.40mm

Details

Item
Terminal Block
Current
10 A
Maximum Voltage
300 V
Standards
UL E48521
Max. Cycles at Max. Process Temperature
135
Stackable
No
Orientation
45° Angle
Entry Angle
45° Angle
Circuits (Loaded)
4
Duration at Max. Process Temperature (seconds)
5
Number of Rows
1
Temperature Range - Operating
-40° to +105°C
Pitch - Mating Interface
5.00mm
Process Temperature max. C
260
Panel Mount
No
Lock to Mating Part
None
