  11. FY07 DISPLAYPORT CONN REC.
This item is Discontinued.

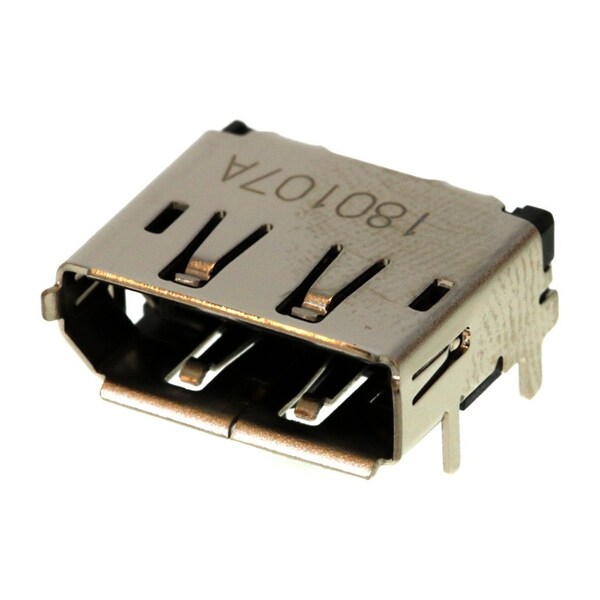

Molex FY07 DISPLAYPORT CONN REC. 47272-0001

FY07 DISPLAYPORT CONN REC. (Discontinued)

  • Mfr # 47272-0001
  • Zoro # G2089288
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
47272-0001
Zoro #
G2089288
UPC #
-
Country of Origin
China

Details

Grounding to Panel
Yes
Termination Interface: Style
Surface Mount
Polarized to PCB
Yes
PCB Locator
Yes
Process Temperature max. C
250
Polarized to Mating Part
Yes
Circuits (maximum)
20
Color - Resin
Black
Orientation
Right Angle
Keying to Mating Part
Yes
Plating min - Termination
1.016µm
Number of Rows
2
Circuits (Loaded)
20
Max. Cycles at Max. Process Temperature
1
Current - Maximum per Contact
0.5A
Material - Plating Mating
Gold
Plating min - Mating
0.762µm
Material - Metal
Copper Alloy
Flammability
94V-0
Pitch - Mating Interface
0.50mm
Gender
Female
Lock to Mating Part
Yes
Shielded
Yes
PCB Retention
Yes
Ports
1
Voltage - Maximum
40V AC
Pitch - Termination Interface
0.50mm
Material - Plating Termination
Matte Tin
Material - Resin
High Temperature Thermoplastic
Duration at Max. Process Temperature (seconds)
10
Panel Mount
Without Flange
Temperature Range - Operating
-20° to +85°C
UL
E29179
