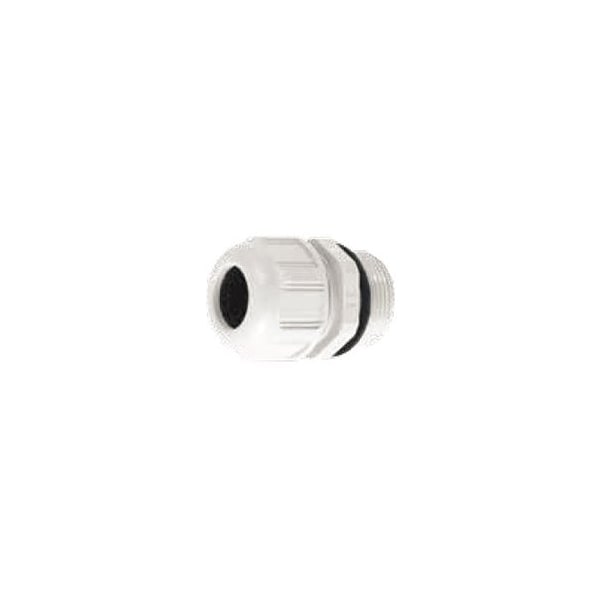

Molex Gwconnect Plastic Gable Gland, With Gasket, Thread, Light Grey Ral 7035 7000.7838.2 - main

Gwconnect Plastic Gable Gland, With Gasket, Thread, Light Grey Ral 7035

  • Mfr # 7000.7838.2

  • Zoro # G105975392

product price:  $11.79
/ea
Sold in multiples of 20 for $235.80

Key Features

Material
Polyamide
Insulation Material
Polyamide
Standards
DIN 40430, EN 60529
Maximum Operating Temperature
100 Degrees C
UL 94 Flammability Rating
V-2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7000.7838.2
Zoro #
G105975392
UPC #
-
Country of Origin
Italy

Dimensions

Panel Cutout Diameter
59.80mm
Thread Size
Pg48
Cable Diameter
37.00-44.00mm

Details

Item
GWconnect
Material
Polyamide
Insulation Material
Polyamide
Standards
DIN 40430, EN 60529
Maximum Operating Temperature
100 Degrees C
UL 94 Flammability Rating
V-2
Color
Light Gray
Series
93600
IP Rating
IP68
Max. Temp.
100°C
Flammability Rating
UL 94 V-2
Waterproof / Dustproof
Yes
Flammability
UL 94V-2
Material - Gasket
NBR
Cable Gland Type
IP68 with Gasket
Product Name
GWconnect
Standard
DIN 40430, EN 60529
Material - Nut
Polyamide
Temperature Range - Operating
-40° to +100°C
Panel Mount
Yes
Thread Type
(Pg)
Material - Cable Gland
Polyamide
Gland Color
Light Grey RAL 7035
