This item is Discontinued.

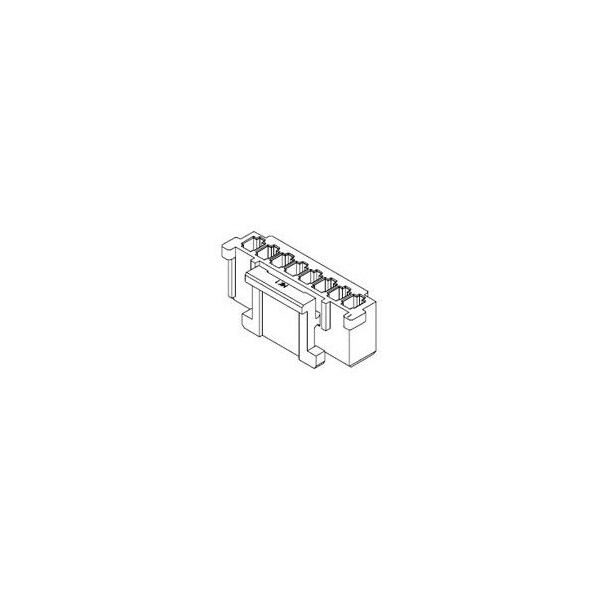

Molex Headers & Wire Housings 14 Ckt Housing Sherlock W-T-B 355071400

Headers & Wire Housings 14 Ckt Housing Sherlock W-T-B (Discontinued)

  • Mfr # 355071400
  • Zoro # G905909917
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
355071400
Zoro #
G905909917
UPC #
-
Country of Origin
Korea, Republic of

Details

Color
Natural
Number of Rows
1
Series
35507
Application
Signal, Wire-to-Board
Max. Temp.
105°C
Standards
CSA Certified; UL E29179
Hole Center to Center
2 mm
Connector Type
Receptacle
Material
Polyester
Current Rating
2 A
Flammability Rating
UL 94V-0
Number of Contacts
14
Glow-Wire Capable
No
Product Name
Sherlock
Keying to Mating Part
None
CSA
LR19980
Flammability
94V-0
Temperature Range - Operating
-40° to +105°C
Current - Maximum per Contact
2.0A
Material - Resin
Polyester
Polarized to Mating Part
Yes
Lock to Mating Part
Yes
UL
E29179
Pitch - Mating Interface
2.00mm
Circuits Detail
14
Stackable
No
