  9. Headers & Wire Housings 2.00Mm (.079) Pitch Microclasp Wire-To-Board Header, Dual Row, Vertical, 18

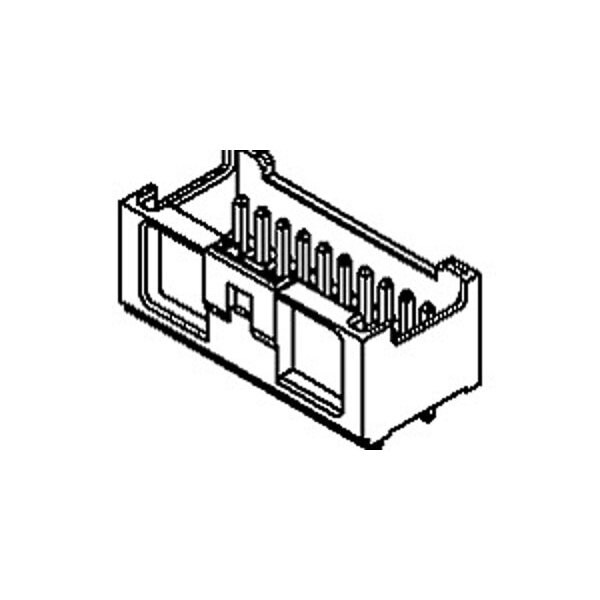

Molex Headers & Wire Housings 2.00Mm (.079) Pitch Microclasp Wire-To-Board Header, Dual Row, Vertical, 18 5018441810 - main

Headers & Wire Housings 2.00Mm (.079) Pitch Microclasp Wire-To-Board Header, Dual Row, Vertical, 18

  • Mfr # 5018441810

  • Zoro # G005916785

product price: $0.98
/ea
Sold in multiples of 125 for $122.50

Key Features

Number of Rows
2
Series
501844
Application
Signal, Wire-to-Board
Voltage - Maximum
250V
Component Type
PCB Header
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5018441810
Zoro #
G005916785
UPC #
-
Country of Origin
Viet Nam

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.20mm

Details

Number of Rows
2
Series
501844
Application
Signal, Wire-to-Board
Voltage - Maximum
250V
Component Type
PCB Header
Product Name
MicroClasp
Orientation
Vertical
Guide to Mating Part
No
Material - Resin
Polyester
Polarized to PCB
Yes
Stackable
No
Breakaway
No
Polarized to Mating Part
Yes
PCB Retention
None
Pitch - Mating Interface
2.00mm
Keying to Mating Part
None
Circuits (Loaded)
18
Material - Plating Mating
Tin
Lock to Mating Part
Yes
Color - Resin
Natural
Durability (mating cycles max)
30
PCB Locator
Yes
Shrouded
Fully
Temperature Range - Operating
-25° to +85°C
First Mate / Last Break
No
Termination Interface Style
Through Hole
Current - Maximum per Contact
3.0A
Glow-Wire Capable
No

Description

Headers & Wire Housings 2.00Mm (.079) Pitch Microclasp Wire-To-Board Header, Dual Row, Vertical, 18 Circuits, With Pcb Locator
