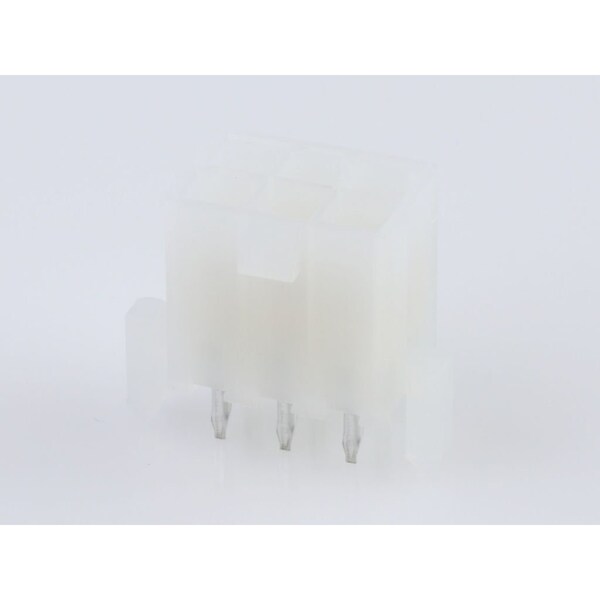

Headers & Wire Housings 4.2Mm 2R Vert 6P Hdr Au W/Snap-In Peg Lck

  • Mfr # 39299064
  • Zoro # G305914122
product price:
$
3.15
/ea
Sold in multiples of 40 for $126.00

Key Features

Max. Temp.
240°C
Max. Voltage
600V
Application
Power, Wire-to-Board
Series
5566
Standards
CSA Certified; UL E29179
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39299064
Zoro #
G305914122
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

Max. Temp.
240°C
Max. Voltage
600V
Application
Power, Wire-to-Board
Series
5566
Standards
CSA Certified; UL E29179
Color
Natural
Terminal Type
Through Hole
Material
Nylon
Hole Center to Center
4.2 mm
Flammability Rating
UL 94V-2
Terminal Finish
Matte Tin Plated
Number of Rows
2
Contact Finish
Gold Plated
Current Rating
9 A
Number of Contacts
6
UL
E29179
Material - Resin
Nylon
Shrouded
Fully
PCB Retention
Yes
Circuits (Loaded)
6
Material - Plating Mating
Gold
Flammability
94V-2
Current - Maximum per Contact
9.0A
Plating min - Mating
0.762µm
Component Type
PCB Header
Max-Cycle
1
Material - Plating Termination
Matte Tin
Max-Duration
5
Material - Metal
Brass
CSA
LR19980
First Mate / Last Break
No
Stackable
No
Temperature Range - Operating
-40° to +105°C
Orientation
Vertical
Glow-Wire Capable
No
Lock to Mating Part
Yes
Polarized to PCB
Yes
Pitch - Mating Interface
4.20mm
Product Name
Mini-Fit Jr.
Max-Temp
240
PCB Locator
Yes
Guide to Mating Part
No
Durability (mating cycles max)
30
Keying to Mating Part
None
Polarized to Mating Part
Yes
Breakaway
No
