  9. Headers & Wire Housings 7.0 W To B Conn W.A. W To B Conn W.A. St

This item is Discontinued.

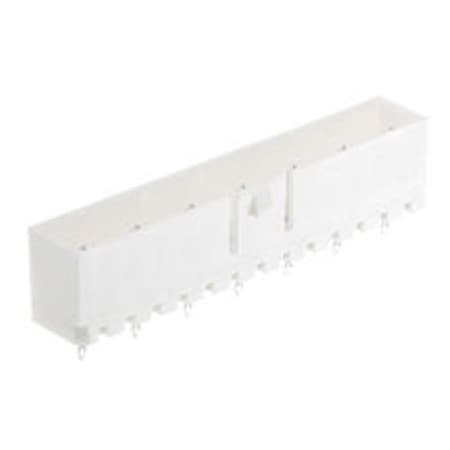

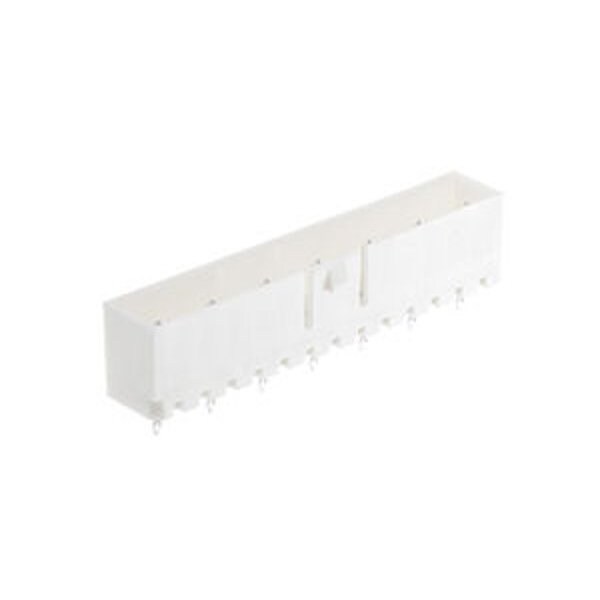

Molex Headers & Wire Housings 7.0 W To B Conn W.A. W To B Conn W.A. St 532650529

Headers & Wire Housings 7.0 W To B Conn W.A. W To B Conn W.A. St (Discontinued)

  • Mfr # 532650529
  • Zoro # G605911586
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
532650529
Zoro #
G605911586
UPC #
-
Country of Origin
Japan

Dimensions

Contact Plating Thickness
1.016 µm
PC Tail Length
3.50mm
PCB Thickness - Recommended
1.60mm

Details

Number of Rows
1
Series
53265
Max. Voltage
250V
Application
Power, Wire-to-Board
Max. Temp.
105°C
Hole Center to Center
7 mm
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Material
Brass
Terminal Finish
Tin Plated
Number of Contacts
5
Current Rating
6 A
Contact Finish
Tin Plated
Flammability Rating
UL 94V-0
PCB Locator
No
Plating min - Mating
1.016µm
Guide to Mating Part
No
Circuits (Loaded)
5
Current - Maximum per Contact
6.0A
Lock to Mating Part
Yes
Material - Plating Termination
Tin
Component Type
PCB Header
Shrouded
Fully
Keying to Mating Part
None
Temperature Range - Operating
-40° to +105°C
Durability (mating cycles max)
30
Material - Plating Mating
Tin
PCB Retention
None
Glow-Wire Capable
No
Flammability
94V-0
Breakaway
No
Product Name
Mighty-SPOX
Polarized to PCB
No
Stackable
No
First Mate / Last Break
No
Orientation
Vertical
UL
E29179
CSA
LR19980
Pitch - Mating Interface
7.00mm
