  9. Headers & Wire Housings C-Grid Pcb Conn Dr V Conn Dr Vt Tn-A 8Ckt

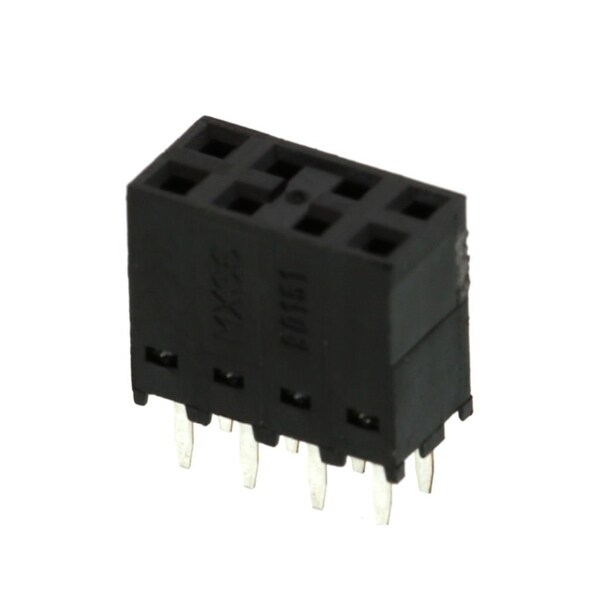

Molex Headers & Wire Housings C-Grid Pcb Conn Dr V Conn Dr Vt Tn-A 8Ckt 901512108 - main

Headers & Wire Housings C-Grid Pcb Conn Dr V Conn Dr Vt Tn-A 8Ckt

  • Mfr # 901512108

  • Zoro # G305911602

product price: $4.29
/ea
Sold in multiples of 52 for $223.08

Key Features

Color
Black
Number of Rows
2
Series
90151
Max. Voltage
350V
Application
Board-to-Board, Signal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
901512108
Zoro #
G305911602
UPC #
800753672239
Country of Origin
Indonesia

Dimensions

Contact Plating Thickness
1.016 µm
PC Tail Length
2.90mm
PCB Thickness - Recommended
0.80mm, 1.70mm

Details

Color
Black
Number of Rows
2
Series
90151
Max. Voltage
350V
Application
Board-to-Board, Signal
Material
Polyester
Standards
UL E29179
Hole Center to Center
2.54 mm
Terminal Type
Through Hole
Sub-Category
PCB Receptacles
Max. Temp.
125°C
Number of Contacts
8
Flammability Rating
UL 94HB
Terminal Finish
Tin Plated
Contact Finish
Tin Plated
Current Rating
3 A
PCB Retention
None
Guide to Mating Part
No
Polarized to PCB
No
Grounding to PCB
No
Current - Maximum per Contact
3.0A
Material - Plating Termination
Tin
PCB Locator
No
UL
E29179
Material - Plating Mating
Tin
Material - Resin
Polyester
Lock to Mating Part
No
Glow-Wire Capable
No
Stackable
Yes
Circuits (Loaded)
8
Component Type
PCB Receptacle
Pitch - Mating Interface
2.54mm
Durability (mating cycles max)
30
Flammability
94HB
Product Name
C-Grid
Plating min - Mating
1.016µm
Temperature Range - Operating
-55° to +125°C
Material - Metal
Phosphor Bronze
Orientation
Vertical
Keying to Mating Part
None
