  9. Headers & Wire Housings C-Grid Pcb Conn Sr V Onn Sr Vt Au-F 14Ck
This item is Discontinued.

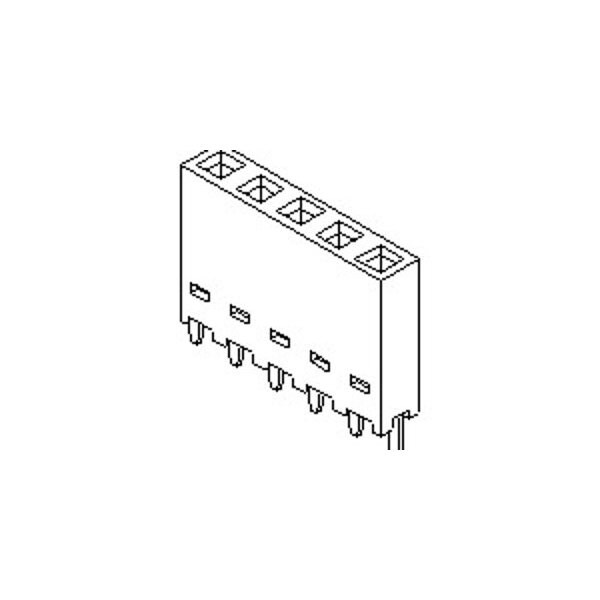

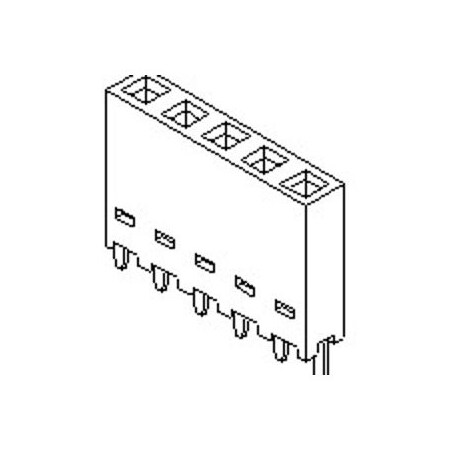

Molex Headers & Wire Housings C-Grid Pcb Conn Sr V Onn Sr Vt Au-F 14Ck 901471314

Headers & Wire Housings C-Grid Pcb Conn Sr V Onn Sr Vt Au-F 14Ck (Discontinued)

  • Mfr # 901471314
  • Zoro # G905911569
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
901471314
Zoro #
G905911569
UPC #
800753672345
Country of Origin
Singapore

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
2.90mm

Details

Color
Black
Number of Rows
1
Series
90147
Max. Voltage
350V
Application
Board-to-Board, Signal
Max. Temp.
125°C
Material
Polyester
Hole Center to Center
2.54 mm
Sub-Category
PCB Receptacles
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Number of Contacts
14
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Current Rating
3 A
Durability (mating cycles max)
500
Lock to Mating Part
No
Current - Maximum per Contact
3.0A
PCB Retention
Yes
Component Type
PCB Receptacle
Temperature Range - Operating
-55° to +125°C
CSA
LR19980
UL
E29179
Product Name
C-Grid III
Pitch - Mating Interface
2.54mm
Flammability
94V-0
Circuits (Loaded)
14
Orientation
Vertical
Grounding to PCB
No
Keying to Mating Part
None
Polarized to PCB
No
PCB Locator
No
Guide to Mating Part
No
Glow-Wire Capable
No
Material - Metal
Phosphor Bronze
Material - Resin
Polyester
Plating min - Mating
0.762µm
Material - Plating Mating
Gold
Material - Plating Termination
Tin
