  11. Headers & Wire Housings C-Grid Shrd Hdr Sr V Hdr Sr Vt Au-E 15Ckt

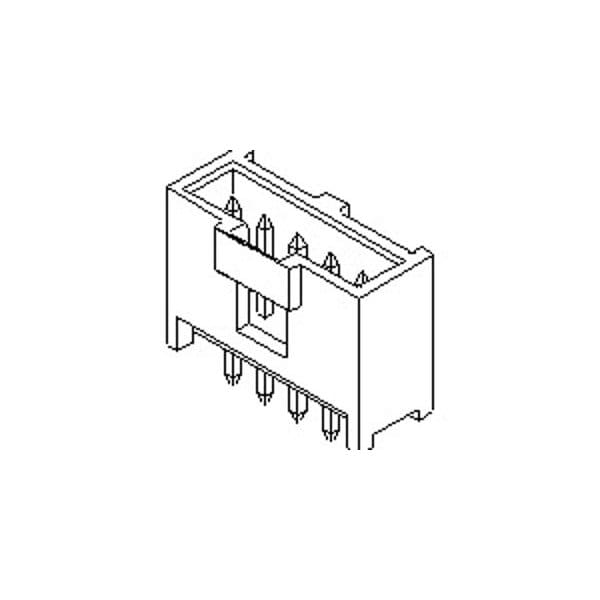

Molex Headers & Wire Housings C-Grid Shrd Hdr Sr V Hdr Sr Vt Au-E 15Ckt 901361215 - main

Headers & Wire Housings C-Grid Shrd Hdr Sr V Hdr Sr Vt Au-E 15Ckt

  • Mfr # 901361215

  • Zoro # G405914992

product price: $1.89
/ea
Sold in multiples of 41 for $77.49

Key Features

Max. Temp.
125°C
Max. Voltage
350V AC/DC
Application
Signal, Wire-to-Board
Series
90136
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
901361215
Zoro #
G405914992
UPC #
-
Country of Origin
Slovenia

Dimensions

Contact Plating Thickness
0.381 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
2.90mm

Details

Max. Temp.
125°C
Max. Voltage
350V AC/DC
Application
Signal, Wire-to-Board
Series
90136
Standards
CSA Certified; UL E29179
Hole Center to Center
2.54 mm
Terminal Type
Through Hole
Color
Black
Material
Polyester
Flammability Rating
UL 94V-0
Current Rating
3 A
Number of Contacts
15
Number of Rows
1
Terminal Finish
Tin Plated
Contact Finish
Gold Plated
PCB Retention
None
PCB Locator
No
Stackable
No
Plating min - Mating
0.381µm
Material - Resin
Polyester
Material - Plating Termination
Tin
Component Type
PCB Header
Circuits (Loaded)
15
Glow-Wire Capable
No
Material - Metal
Brass
Current - Maximum per Contact
3.0A
CSA
LR19980
Lock to Mating Part
Yes
Temperature Range - Operating
-55° to +125°C
Pitch - Mating Interface
2.54mm
Orientation
Vertical
Breakaway
No
UL
E29179
Keying to Mating Part
None
Material - Plating Mating
Gold
First Mate / Last Break
No
Product Name
C-Grid III
Guide to Mating Part
No
Shrouded
Fully
Polarized to PCB
No
