This item is Discontinued.

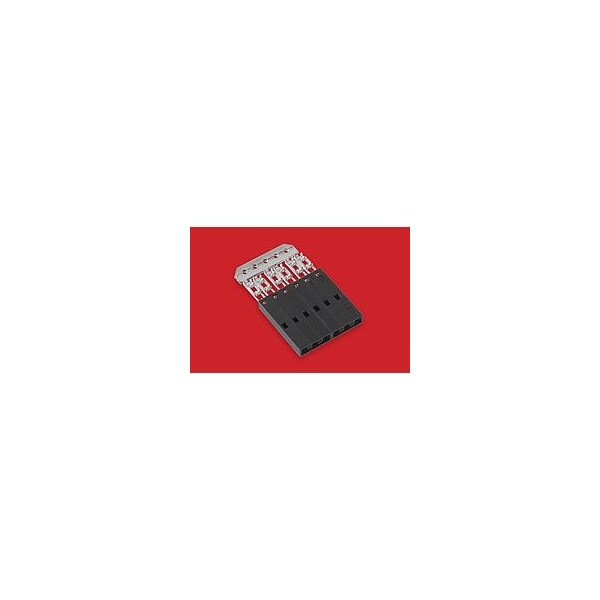

Molex Headers & Wire Housings Cgrid Sl Idt Opt A 30 Sau 2Ckt 14562029

Headers & Wire Housings Cgrid Sl Idt Opt A 30 Sau 2Ckt (Discontinued)

  • Mfr # 14562029
  • Zoro # G505910276
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
14562029
Zoro #
G505910276
UPC #
-
Country of Origin
United States

Dimensions

Max. Insulation Dia.
1.35 mm
Contact Plating Thickness
0.762 µm
Wire Size (AWG)
26
Wire Insulation Diameter
1.35mm max.

Details

Color
Black
Number of Rows
1
Series
70400
Max. Voltage
250V
Terminal Type
IDT or Pierce
Wire Range
26 AWG
Hole Center to Center
2.54 mm
Max. Temp.
105°C
Material
Polyester Alloy
Standards
CSA Certified; UL E29179
Wire Type
Discrete
Terminal Finish
Tin Plated
Current Rating
3 A
Number of Contacts
2
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Current - Maximum per Contact
3.0A
Entry Angle
Vertical
PCB Retention
None
Circuits (Loaded)
2
Durability (mating cycles max)
50
Material - Plating Termination
Tin
Pitch - Mating Interface
2.54mm
Lock to Mating Part
None
Component Type
Housing
Glow-Wire Capable
No
Wire/Cable Type
Discrete Wire, Ribbon Cable
Plating min - Mating
0.762µm
Temperature Range - Operating
-40° to +105°C
Material - Plating Mating
Gold
Material - Resin
Polyester Alloy
Stackable
Yes
Gender
Female
Polarized to Mating Part
No
CSA
LR19980
Flammability
94V-0
Material - Metal
Phosphor Bronze
Product Name
SL
UL
E29179
