  9. Headers & Wire Housings Embs Package For 504194 11P

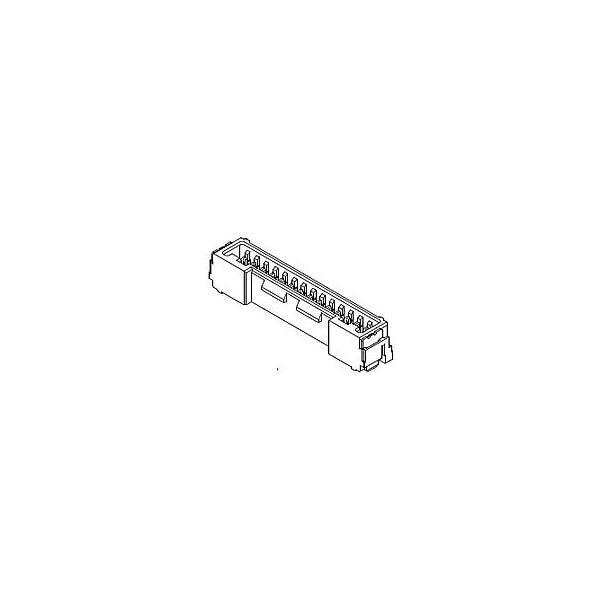

Molex Headers & Wire Housings Embs Package For 504194 11P 5041941170 - main

Headers & Wire Housings Embs Package For 504194 11P

  • Mfr # 5041941170

  • Zoro # G905910661

product price: $1.95
/ea
Sold in multiples of 1200 for $2,340.00

Key Features

Number of Rows
1
Series
504194
Application
Wire-to-Board
Glow-Wire Capable
No
Component Type
PCB Header
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5041941170
Zoro #
G905910661
UPC #
-
Country of Origin
Malaysia

Dimensions

PCB Thickness - Recommended
1.20mm, 1.60mm
PC Tail Length
3.00mm

Details

Number of Rows
1
Series
504194
Application
Wire-to-Board
Glow-Wire Capable
No
Component Type
PCB Header
Orientation
Vertical
Current - Maximum per Contact
1.5A
Breakaway
No
Guide to Mating Part
No
Circuits (Loaded)
11
Pitch - Mating Interface
1.25mm
Temperature Range - Operating
-25° to +85°C
Voltage - Maximum
50V
Termination Interface Style
Surface Mount
Material - Metal
Brass
First Mate / Last Break
No
Durability (mating cycles max)
30
Material - Plating Mating
Tin
Material - Plating Termination
Nickel
Product Name
Micro-Lock
Lock to Mating Part
Yes
PCB Retention
None
PCB Locator
No
Color - Resin
Beige
