  9. Headers & Wire Housings Kk 100 Pcb Assy Btm Assy Btm 05 Ckt Tin
This item is Discontinued.

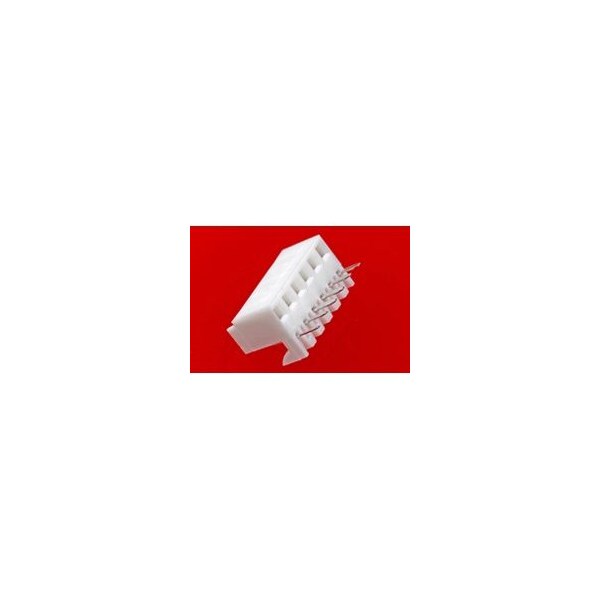

Molex Headers & Wire Housings Kk 100 Pcb Assy Btm Assy Btm 05 Ckt Tin 38001395

Headers & Wire Housings Kk 100 Pcb Assy Btm Assy Btm 05 Ckt Tin (Discontinued)

  • Mfr # 38001395
  • Zoro # G005910967
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
38001395
Zoro #
G005910967
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
1.016 µm
PC Tail Length
3.60mm
PCB Thickness - Recommended
1.60mm

Details

Number of Rows
1
Material
Nylon
Color
Natural
Application
Board-to-Board, Signal
Series
4455
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Current Rating
2.5 A
Max. Voltage
500V
Hole Center to Center
2.54 mm
Contact Finish
Tin Plated
Flammability Rating
UL 94V-0
Number of Contacts
5
Terminal Finish
Tin Plated
Max. Temp.
235°C
Grounding to PCB
No
Product Name
KK 254
Pitch - Mating Interface
2.54mm
CSA
LR19980
Guide to Mating Part
No
Color - Resin
Natural (White)
Component Type
PCB Receptacle
Max-Temp
235
Material - Metal
Phosphor Bronze
Polarized to PCB
No
Current - Maximum per Contact
2.5A
UL
E29179
Material - Plating Termination
Tin
Lock to Mating Part
No
Max-Duration
5
Temperature Range - Operating
See Product Specification
Circuits (Loaded)
5
Glow-Wire Capable
No
Material - Resin
Nylon
Plating min - Mating
1.016µm
Flammability
94V-0
Material - Plating Mating
Tin
Keying to Mating Part
None
PCB Locator
No
PCB Retention
None
Orientation
Bottom Entry
