  9. Headers & Wire Housings Kk 100 Pcb Assy Top Assy Top 05 Ckt Tin
This item is Discontinued.

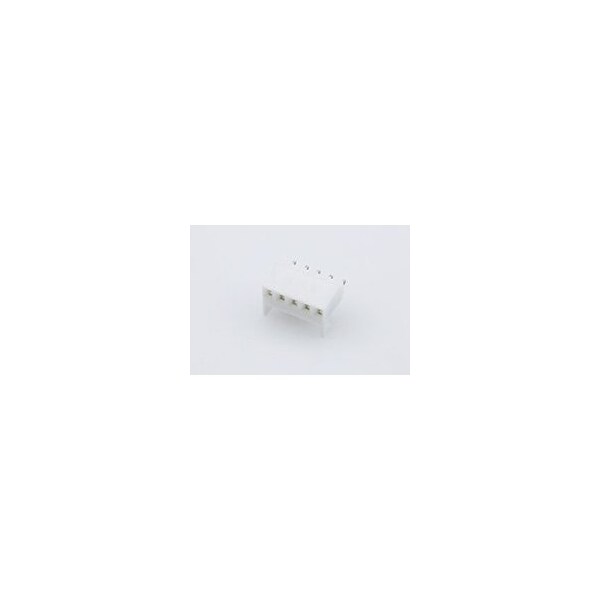

Molex Headers & Wire Housings Kk 100 Pcb Assy Top Assy Top 05 Ckt Tin 38001425

Headers & Wire Housings Kk 100 Pcb Assy Top Assy Top 05 Ckt Tin (Discontinued)

  • Mfr # 38001425
  • Zoro # G705911110
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
38001425
Zoro #
G705911110
UPC #
-
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
1.016 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.30mm

Details

Number of Rows
1
Material
Nylon
Color
Natural
Series
4455
Application
Board-to-Board, Signal
Standards
CSA Certified; UL E29179
Current Rating
2.5 A
Contact Finish
Tin Plated
Max. Temp.
235°C
Flammability Rating
UL 94V-0
Number of Contacts
5
Max. Voltage
500V
Terminal Type
Through Hole
Terminal Finish
Tin Plated
Hole Center to Center
2.54 mm
Color - Resin
Natural (White)
PCB Retention
None
Current - Maximum per Contact
2.5A
Orientation
Vertical
Plating min - Mating
1.016µm
Lock to Mating Part
No
CSA
LR19980
Max-Duration
5
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Temperature Range - Operating
See Product Specification
Max-Temp
235
Flammability
94V-0
PCB Locator
No
Product Name
KK 254
Material - Metal
Phosphor Bronze
Keying to Mating Part
None
Pitch - Mating Interface
2.54mm
Polarized to PCB
No
Guide to Mating Part
No
Component Type
PCB Receptacle
Grounding to PCB
No
Circuits (Loaded)
5
Material - Resin
Nylon
Glow-Wire Capable
No
UL
E29179
