  9. Headers & Wire Housings Kk200 Pol Wafer Ass Wafer Ass 2599M07A04

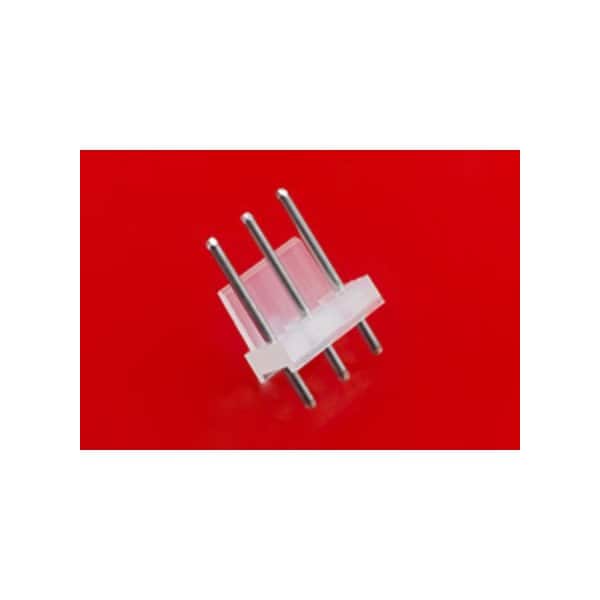

Molex Headers & Wire Housings Kk200 Pol Wafer Ass Wafer Ass 2599M07A04 38000887 - main

Headers & Wire Housings Kk200 Pol Wafer Ass Wafer Ass 2599M07A04

  • Mfr # 38000887

  • Zoro # G105911086

product price: $0.68
/ea
Sold in multiples of 117 for $79.56

Key Features

Number of Rows
1
Series
2599
Application
Signal, Wire-to-Board
Temperature Range - Operating
See Product Specification
PCB Thickness - Recommended
1.60mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
38000887
Zoro #
G105911086
UPC #
-
Country of Origin
China

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
4.45mm

Details

Number of Rows
1
Series
2599
Application
Signal, Wire-to-Board
Temperature Range - Operating
See Product Specification
First Mate / Last Break
No
Material - Plating Mating
Tin
Material - Metal
Brass
Circuits (Loaded)
6
Flammability
94V-2
Breakaway
No
Pitch - Mating Interface
5.08mm
Stackable
No
PCB Retention
None
Component Type
PCB Header
Max-Duration
5
Current - Maximum per Contact
4.5A
Color - Resin
Natural
Material - Resin
Nylon
Lock to Mating Part
None
PCB Locator
No
Voltage - Maximum
250V
UL
E29179
Max-Cycle
1
Max-Temp
235
Polarized to PCB
No
Guide to Mating Part
No
Keying to Mating Part
None
Glow-Wire Capable
No
Polarized to Mating Part
Yes
Shrouded
Partial
Material - Plating Termination
Tin
Plating min - Mating
5.080µm
Durability (mating cycles max)
25
Orientation
Vertical
Termination Interface Style
Through Hole
Product Name
KK 508
