  11. Headers & Wire Housings Mgrid Vhdr .76Aulf 1 D Vhdr .76Aulf 10Ckt

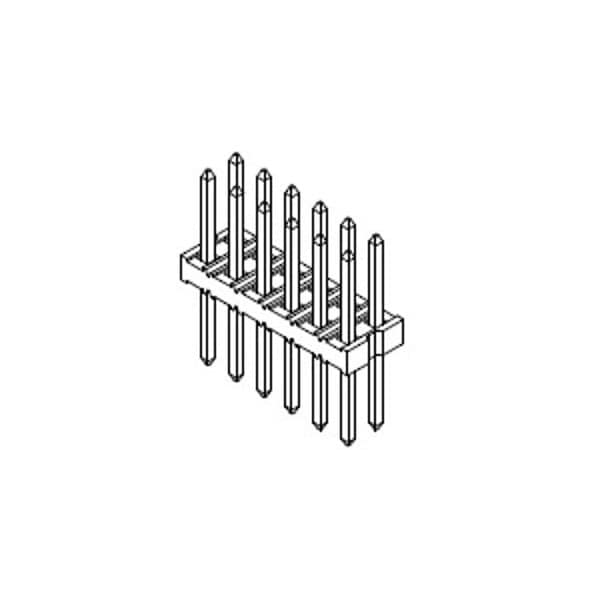

Molex Headers & Wire Housings Mgrid Vhdr .76Aulf 1 D Vhdr .76Aulf 10Ckt 877581017 - main

Headers & Wire Housings Mgrid Vhdr .76Aulf 1 D Vhdr .76Aulf 10Ckt

  • Mfr # 877581017

  • Zoro # G305915082

product price: $0.79
/ea
Sold in multiples of 109 for $86.11

Key Features

Max. Temp.
250°C
Max. Voltage
125V
Application
Board-to-Board, Signal
Series
87758
Standards
UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
877581017
Zoro #
G305915082
UPC #
-
Country of Origin
India

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
2.60mm
Mated Height
4.00mm

Details

Max. Temp.
250°C
Max. Voltage
125V
Application
Board-to-Board, Signal
Series
87758
Standards
UL E29179
Features
Breakaway; Surface Mount Compatible
Hole Center to Center
2 mm
Color
Black
Terminal Type
Through Hole
Material
Nylon
Contact Finish
Gold Plated
Flammability Rating
UL 94V-0
Number of Rows
2
Terminal Finish
Tin Plated
Current Rating
2 A
Number of Contacts
10
Material - Plating Termination
Tin
Temperature Range - Operating
-55° to +105°C
Guide to Mating Part
No
Circuits (Loaded)
10
Breakaway
Yes
Max-Duration
3
Pitch - Mating Interface
2.00mm
Flammability
94V-0
PCB Locator
No
Stackable
No
Max-Temp
250
Current - Maximum per Contact
2.0A
Max-Cycle
1
First Mate / Last Break
No
Polarized to Mating Part
No
Shrouded
No
Product Name
Milli-Grid
Glow-Wire Capable
No
Plating min - Mating
0.762µm
Material - Resin
Nylon
Lock to Mating Part
None
Material - Metal
Phosphor Bronze
Polarized to PCB
No
Durability (mating cycles max)
100
PCB Retention
None
Keying to Mating Part
None
Orientation
Vertical
Material - Plating Mating
Gold
Component Type
PCB Header
UL
E29179
