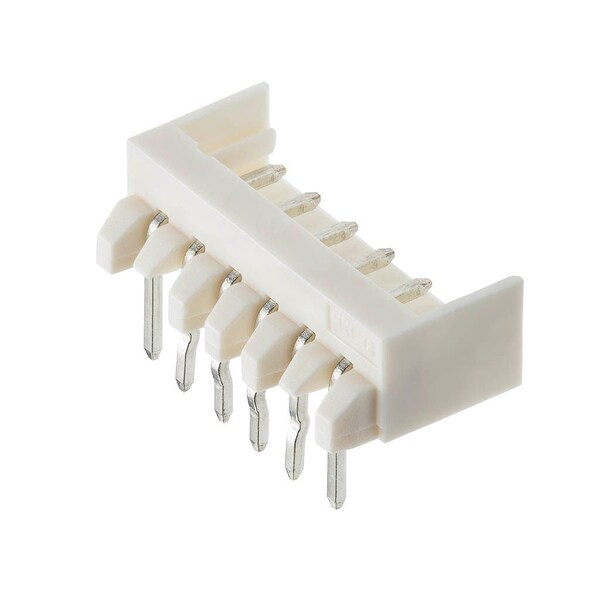

Headers & Wire Housings New 2.0 Wtb Wafer As Wafer Assy Ra 14Ckt

  • Mfr # 532541470

  • Zoro # G005911674

product price:
$
0.56
/ea
Sold in multiples of 157 for $87.92

Key Features

Number of Rows
1
Series
53254
Max. Voltage
125V
Application
Signal, Wire-to-Board
Hole Center to Center
2 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
532541470
Zoro #
G005911674
UPC #
-
Country of Origin
Morocco

Dimensions

Contact Plating Thickness
1.016 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

Number of Rows
1
Series
53254
Max. Voltage
125V
Application
Signal, Wire-to-Board
Hole Center to Center
2 mm
Material
Nylon
Terminal Type
Through Hole
Max. Temp.
105°C
Standards
UL E29179
Terminal Finish
Tin Plated
Current Rating
2 A
Contact Finish
Tin Plated
Number of Contacts
14
Polarized to PCB
No
Breakaway
No
Plating min - Mating
1.016µm
PCB Retention
Yes
Orientation
Right Angle
Current - Maximum per Contact
2.0A
Stackable
No
Material - Plating Termination
Tin
Circuits (Loaded)
14
Component Type
PCB Header
Glow-Wire Capable
No
Product Name
Micro-Latch
Temperature Range - Operating
-55° to +105°C
Shrouded
Partial
Durability (mating cycles max)
30
PCB Locator
No
Material - Metal
Brass
Voltage - Maximum
250V
Material - Resin
Nylon
Pitch - Mating Interface
2.00mm
First Mate / Last Break
No
Color - Resin
Natural
UL
E29179
Polarized to Mating Part
Yes
Lock to Mating Part
Yes
Material - Plating Mating
Tin
