  9. Headers & Wire Housings Pcb Receptacle 7P Bottom Entry

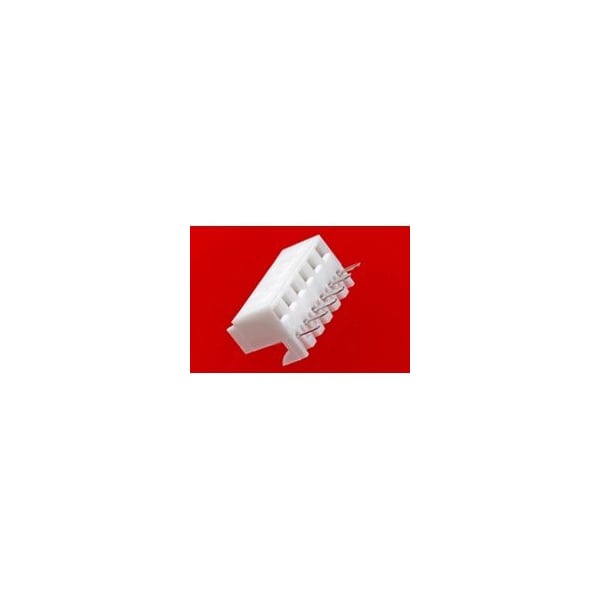

Molex Headers & Wire Housings Pcb Receptacle 7P Bottom Entry 22142074 - main

Headers & Wire Housings Pcb Receptacle 7P Bottom Entry

  • Mfr # 22142074

  • Zoro # G105910140

product price: $0.45
/ea
Sold in multiples of 2268 for $1,020.60

Key Features

Color
Natural
Number of Rows
1
Series
4455
Max. Voltage
500V
Application
Board-to-Board, Signal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22142074
Zoro #
G105910140
UPC #
-
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
2.54 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.35mm

Details

Color
Natural
Number of Rows
1
Series
4455
Max. Voltage
500V
Application
Board-to-Board, Signal
Hole Center to Center
2.54 mm
Max. Temp.
235°C
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Material
Nylon
Contact Finish
Tin Plated
Flammability Rating
UL 94V-0
Number of Contacts
7
Current Rating
2.5 A
Terminal Finish
Tin Plated
Glow-Wire Capable
No
Material - Plating Mating
Tin
Keying to Mating Part
None
Max-Duration
5
CSA
LR19980
Color - Resin
Natural (White)
Grounding to PCB
No
Product Name
KK 254
Plating min - Mating
2.540µm
Polarized to PCB
No
Flammability
94V-0
Guide to Mating Part
No
UL
E29179
PCB Locator
No
Lock to Mating Part
No
Orientation
Bottom Entry
Material - Plating Termination
Tin
Max-Temp
235
Component Type
PCB Receptacle
Current - Maximum per Contact
2.5A
PCB Retention
None
Temperature Range - Operating
See Product Specification
Material - Resin
Nylon
Pitch - Mating Interface
2.54mm
Material - Metal
Brass
Circuits (Loaded)
7
