Shop MOLEX

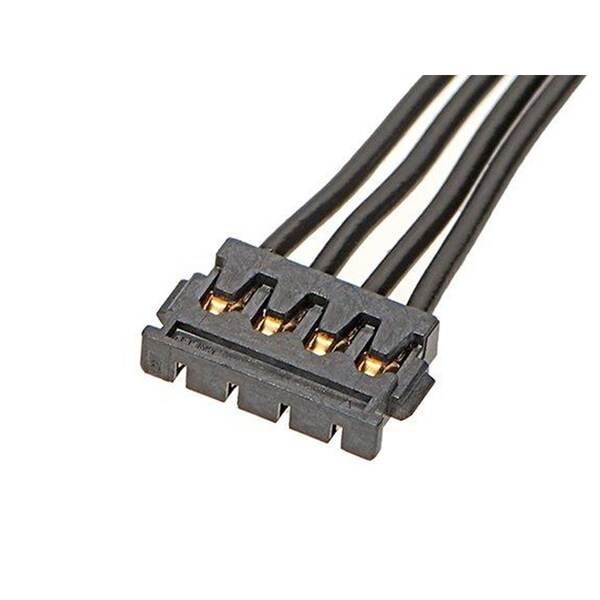

Headers & Wire Housings Picoezmate 4 Circuit 150Mm

  • Mfr # 369200402

  • Zoro # G605916970

product price:
$
2.15
/ea
Sold in multiples of 40 for $86.00

Key Features

Color
Black
Number of Rows
1
Series
36920
Max. Voltage
50V AC/DC
Application
Signal, Wire-to-Board
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
369200402
Zoro #
G605916970
UPC #
-
Country of Origin
China

Dimensions

Length
150 mm
Max. Insulation Dia.
0.7 mm
Contact Plating Thickness
0.1 µm
Wire Size (AWG)
28
Cable Length
150.00mm
Wire Insulation Diameter
0.60-0.70mm

Details

Color
Black
Number of Rows
1
Series
36920
Max. Voltage
50V AC/DC
Application
Signal, Wire-to-Board
Hole Center to Center
1.2 mm
Material
Liquid Crystal Polymer
Connector Type
Female-Female
Type
Discrete Wire Assembly
Terminal Type
Crimp or Compression
Wire Range
28 AWG
Contact Finish
Gold Plated
Current Rating
1.5 A
Number of Contacts
4
Terminal Finish
Gold Plated
Material - Plating Mating
Gold
Material - Resin
Liquid Crystal Polymer
Lock to Mating Part
Yes
Assembly Configuration
Dual Ended Connectors
Wire/Cable Type
UL 1571
Connector to Connector
Pico-EZmate-to-Pico-EZmate
Product Name
Pico-EZmate
Plating min - Mating
0.100µm
Single Ended
No
Current - Maximum per Contact
1.5A
Pitch - Mating Interface
1.20mm
Circuits (Loaded)
4
Voltage - Maximum
50V AC (RMS)/DC
Material - Metal
Copper Alloy
Material - Plating Termination
Gold
Overmolded
No
