Shop MOLEX

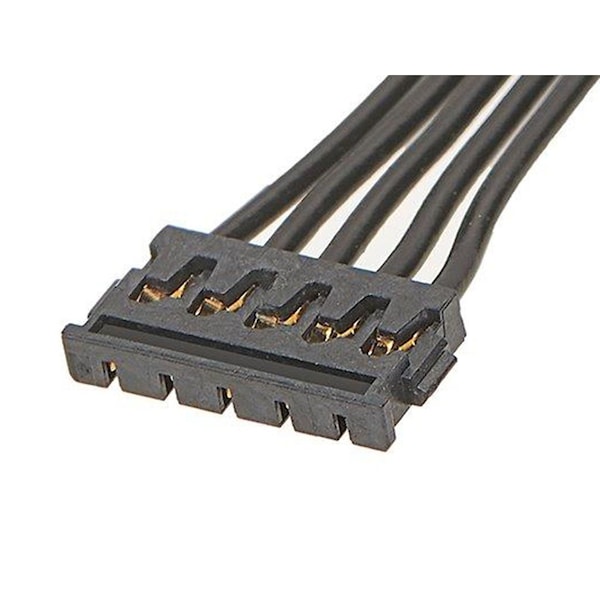

Headers & Wire Housings Picoezmate 5 Circuit 150Mm

  • Mfr # 369200502

  • Zoro # G905910722

product price:
$
2.59
/ea
Sold in multiples of 1350 for $3,496.50

Key Features

Color
Black
Number of Rows
1
Series
36920
Max. Voltage
50V AC/DC
Application
Signal, Wire-to-Board
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
369200502
Zoro #
G905910722
UPC #
-
Country of Origin
India

Dimensions

Length
150 mm
Max. Insulation Dia.
0.7 mm
Contact Plating Thickness
0.1 µm
Wire Size (AWG)
28
Cable Length
150.00mm
Wire Insulation Diameter
0.60-0.70mm

Details

Color
Black
Number of Rows
1
Series
36920
Max. Voltage
50V AC/DC
Application
Signal, Wire-to-Board
Material
Liquid Crystal Polymer
Wire Range
28 AWG
Hole Center to Center
1.2 mm
Terminal Type
Crimp or Compression
Type
Discrete Wire Assembly
Connector Type
Female-Female
Contact Finish
Gold Plated
Current Rating
1.5 A
Terminal Finish
Gold Plated
Number of Contacts
5
Single Ended
No
Material - Metal
Copper Alloy
Lock to Mating Part
Yes
Circuits (Loaded)
5
Wire/Cable Type
UL 1571
Assembly Configuration
Dual Ended Connectors
Voltage - Maximum
50V AC (RMS)/DC
Product Name
Pico-EZmate
Material - Resin
Liquid Crystal Polymer
Plating min - Mating
0.100µm
Overmolded
No
Current - Maximum per Contact
1.5A
Material - Plating Mating
Gold
Pitch - Mating Interface
1.20mm
Connector to Connector
Pico-EZmate-to-Pico-EZmate
Material - Plating Termination
Gold
