  9. Headers & Wire Housings Picoflex 14P Hsg Lopro Idt Au

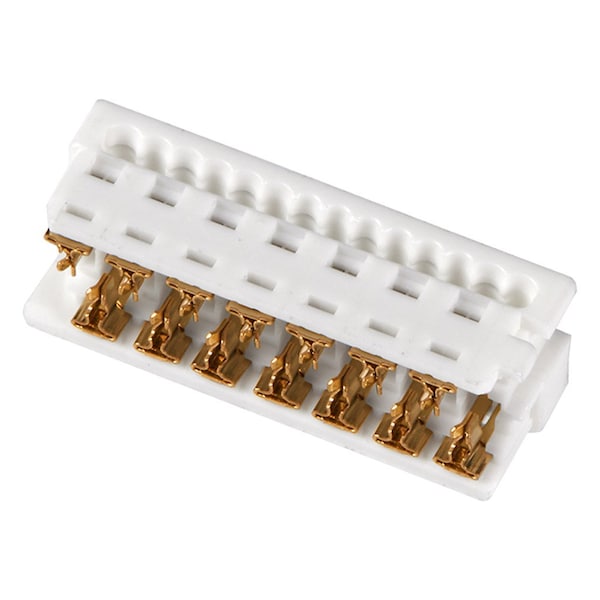

Molex Headers & Wire Housings Picoflex 14P Hsg Lopro Idt Au 903273314 - main

Headers & Wire Housings Picoflex 14P Hsg Lopro Idt Au

  • Mfr # 903273314

  • Zoro # G505911471

product price: $3.15
/ea
Sold in multiples of 35 for $110.25

Key Features

Color
White
Min. Single Wire Size
28 AWG
Number of Rows
2
Max. Single Wire Size
26 AWG
Series
90327
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
903273314
Zoro #
G505911471
UPC #
-
Country of Origin
Malaysia

Dimensions

Min. Single Wire Size
28 AWG
Max. Single Wire Size
26 AWG
Max. Insulation Dia.
1 mm
Wire Insulation Diameter
1.00mm max.
Wire Size (AWG)
26, 28

Details

Color
White
Number of Rows
2
Series
90327
Max. Voltage
250V
Max. Temp.
105°C
Terminal Type
IDT or Pierce
Hole Center to Center
1.27 mm
Standards
CSA Certified; UL E29179
Material
Polyester
Flammability Rating
UL 94V-0
Terminal Finish
Gold Plated
Number of Contacts
14
Contact Finish
Palladium Nickel Plated
Current Rating
1.2 A
Material - Metal
Phosphor Bronze
Stackable
No
Gender
Receptacle
Wire/Cable Type
Ribbon Cable
Polarized to PCB
No
PCB Retention
None
Current - Maximum per Contact
1.2A
CSA
LR19980
Material - Resin
Polyester
Circuits (Loaded)
14
Material - Plating Termination
Gold
Material - Plating Mating
Gold
Pitch - Mating Interface
1.27mm
Polarized to Mating Part
Yes
Entry Angle
Vertical
Lock to Mating Part
Yes
Durability (mating cycles max)
100
Product Name
Picoflex
Glow-Wire Capable
No
Shrouded
Fully
Component Type
Housing
Flammability
94V-0
PCB Locator
No
UL
E29179
Temperature Range - Operating
-40° to +105°C
