  9. Headers & Wire Housings Picoflex Pf50 Lp Idt Rec 22Ckt Wht

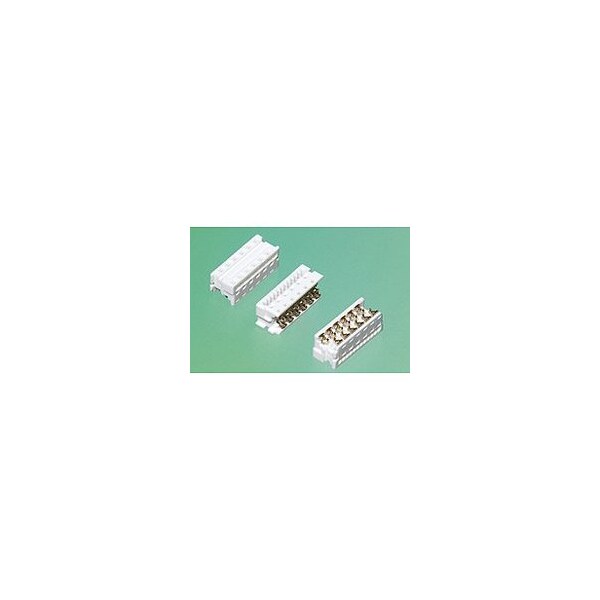

Molex Headers & Wire Housings Picoflex Pf50 Lp Idt Rec 22Ckt Wht 903273322 - main

Headers & Wire Housings Picoflex Pf50 Lp Idt Rec 22Ckt Wht

  • Mfr # 903273322

  • Zoro # G505911518

product price: $3.85
/ea
Sold in multiples of 25 for $96.25

Key Features

Color
White
Min. Single Wire Size
28 AWG
Number of Rows
2
Max. Single Wire Size
26 AWG
Series
90327
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
903273322
Zoro #
G505911518
UPC #
-
Country of Origin
Ireland

Dimensions

Min. Single Wire Size
28 AWG
Max. Single Wire Size
26 AWG
Max. Insulation Dia.
1 mm
Wire Insulation Diameter
1.00mm max.
Wire Size (AWG)
26, 28

Details

Color
White
Number of Rows
2
Series
90327
Max. Voltage
250V
Material
Polyester
Max. Temp.
105°C
Standards
CSA Certified
Terminal Type
IDT or Pierce
Hole Center to Center
1.27 mm
Current Rating
1.2 A
Flammability Rating
UL 94V-0
Number of Contacts
22
Contact Finish
Palladium Nickel Plated
Terminal Finish
Gold Plated
Polarized to PCB
No
Durability (mating cycles max)
100
Gender
Receptacle
Pitch - Mating Interface
1.27mm
PCB Locator
No
Shrouded
Fully
Product Name
Picoflex
Material - Resin
Polyester
Material - Plating Termination
Gold
PCB Retention
None
Material - Metal
Phosphor Bronze
Stackable
No
Current - Maximum per Contact
1.2A
Glow-Wire Capable
No
CSA
LR19980
Flammability
94V-0
Component Type
Housing
Temperature Range - Operating
-40° to +105°C
Circuits (Loaded)
22
Polarized to Mating Part
Yes
Material - Plating Mating
Gold
Entry Angle
Vertical
Wire/Cable Type
Ribbon Cable
Lock to Mating Part
Yes
