Shop MOLEX

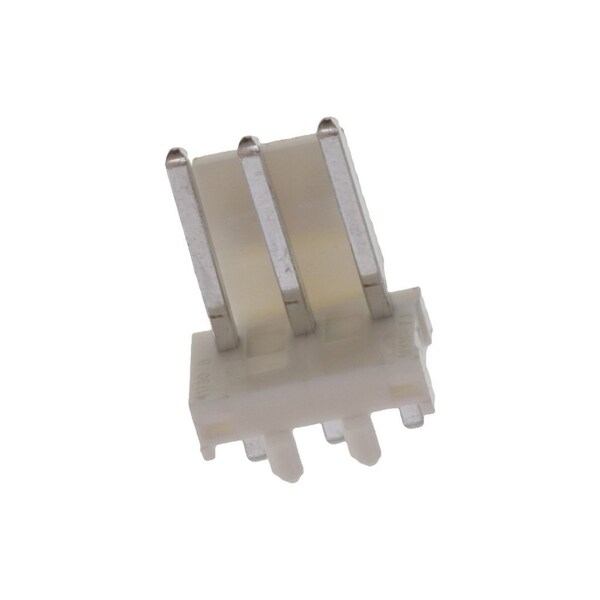

Headers & Wire Housings Vert Friction Lk 3P Press-Fit Pegs

  • Mfr # 26644030

  • Zoro # G405910321

product price:
$
0.19
/ea
Sold in multiples of 455 for $86.45

Key Features

Number of Rows
1
Series
42491
Application
Power, Wire-to-Board
Lock to Mating Part
Yes
Plating min - Mating
5.080µm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
26644030
Zoro #
G405910321
UPC #
-
Country of Origin
India
Number of Rows
1
Series
42491
Application
Power, Wire-to-Board
Lock to Mating Part
Yes
Plating min - Mating
5.080µm
Flammability
94V-0
Termination Interface Style
Through Hole
Material - Plating Mating
Tin
Max-Duration
5
Stackable
Yes
Orientation
Vertical
Material - Plating Termination
Tin
Max-Cycle
1
Breakaway
No
Glow-Wire Capable
No
Pitch - Mating Interface
3.96mm
CSA
LR19980
Temperature Range - Operating
See Product Specification
Durability (mating cycles max)
25
Polarized to Mating Part
Yes
PCB Locator
Yes
Current - Maximum per Contact
7.0A
Shrouded
Partial
Material - Metal
Brass
PCB Retention
Yes
Circuits (Loaded)
3
Max-Temp
235
Voltage - Maximum
250V
Polarized to PCB
Yes
Component Type
PCB Header
Product Name
KK 396
UL
E29179
