  9. Headers & Wire Housings Wafer Assy Fr/Lk .10 Er Assy Fr/Lk .100In
This item is Discontinued.

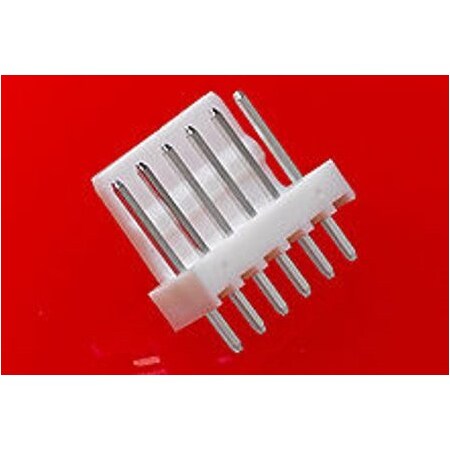

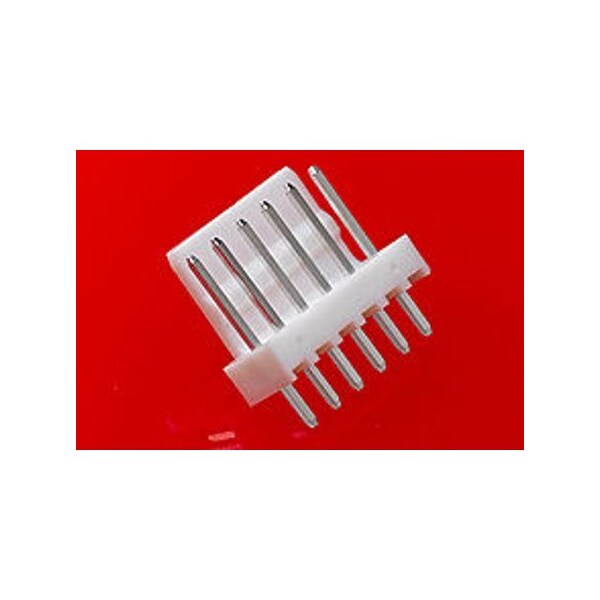

Molex Headers & Wire Housings Wafer Assy Fr/Lk .10 Er Assy Fr/Lk .100In 38006294

Headers & Wire Housings Wafer Assy Fr/Lk .10 Er Assy Fr/Lk .100In (Discontinued)

  • Mfr # 38006294
  • Zoro # G405911298
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
38006294
Zoro #
G405911298
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
10.00mm

Details

Number of Rows
1
Series
6410
Application
Signal, Wire-to-Board
Guide to Mating Part
No
Max-Duration
5
Max-Cycle
1
Lock to Mating Part
Yes
Product Name
KK 254
Keying to Mating Part
None
First Mate / Last Break
No
Pitch - Mating Interface
2.54mm
Shrouded
Partial
Current - Maximum per Contact
4.0A
PCB Retention
None
PCB Locator
No
CSA
LR19980
Material - Resin
Nylon
Polarized to PCB
No
Component Type
PCB Header
Color - Resin
Natural (White)
Material - Plating Termination
Tin
Max-Temp
235
Orientation
Vertical
Flammability
94V-0
Polarized to Mating Part
Yes
Circuits (Loaded)
4
Durability (mating cycles max)
25
Material - Metal
Brass
Temperature Range - Operating
See Product Specification
Breakaway
No
Plating min - Mating
5.080µm
UL
E29179
Glow-Wire Capable
No
Stackable
No
Voltage - Maximum
500V
Termination Interface Style
Through Hole
Material - Plating Mating
Tin
