  11. High Speed / Modular Connectors Impact 85 Dc 3X16 Gl Sn

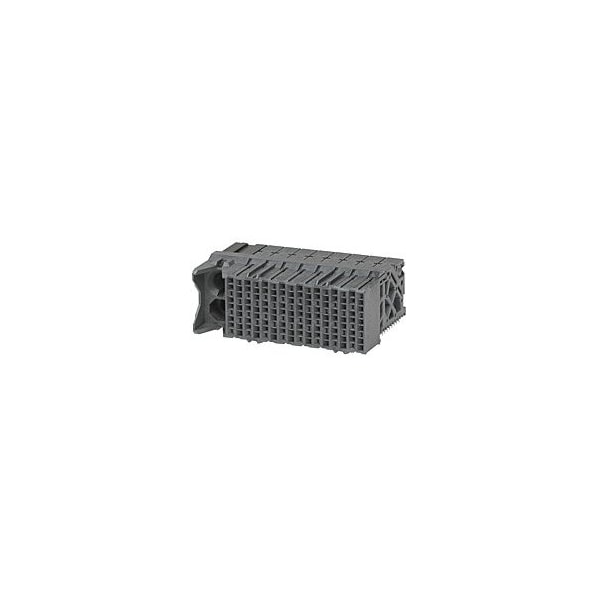

Molex High Speed / Modular Connectors Impact 85 Dc 3X16 Gl Sn 1705303026 - main

High Speed / Modular Connectors Impact 85 Dc 3X16 Gl Sn

  • Mfr # 1705303026

  • Zoro # G405926438

product price: $27.79
/ea
Sold in multiples of 3 for $83.37

Key Features

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Conventional, Coplanar, Daughtercard
Series
170530
Standards
UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1705303026
Zoro #
G405926438
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
1.20mm
PCB Thickness - Recommended
1.00mm

Details

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Conventional, Coplanar, Daughtercard
Series
170530
Standards
UL E29179
Color
Gray
Terminal Type
Through Hole - Compliant Pin
Hole Center to Center
1.35 mm; 1.9 mm
Material
High Temperature Thermoplastic
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Number of Rows
9
Number of Contacts
144
Contact Finish
Gold Plated
Current Rating
0.75 A
First Mate / Last Break
No
Plating min - Mating
0.762µm
Material - Plating Termination
Tin
UL
E29179
Impedance
85Ω
Number of Pairs
3
Orientation
Right Angle
Pitch - Mating Interface
1.35mm, 1.90mm
Temperature Range - Operating
-55° to +85°C
Voltage - Maximum
30V AC (RMS)/DC
Material - Plating Mating
Gold
Guide to Mating Part
Yes
Material - Metal
High Performance Alloy (HPA)
Number of Columns
16
Shielded
No
Material - Resin
High Temperature Thermoplastic
Circuits (Loaded)
144
Data Rate
25.0 Gbps
Product Name
Impact
Flammability
94V-0
Durability (mating cycles max)
200
Keying to Mating Part
None
Stackable
No
Current - Maximum per Contact
0.75A
Polarized to PCB
No
PCB Retention
None
Component Type
PCB Receptacle
PCB Locator
No
