  11. High Speed / Modular Connectors Impact Bp 2X16 Dual Sn

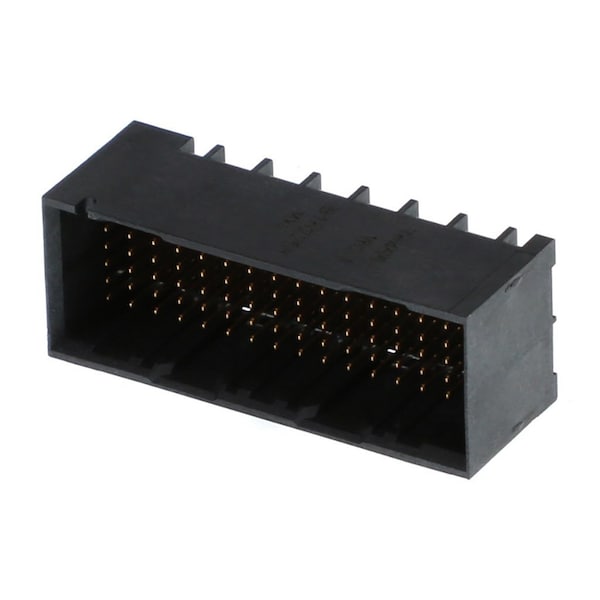

Molex High Speed / Modular Connectors Impact Bp 2X16 Dual Sn 764551627 - main

High Speed / Modular Connectors Impact Bp 2X16 Dual Sn

  • Mfr # 764551627

  • Zoro # G505926567

product price: $10.45
/ea
Sold in multiples of 8 for $83.60

Key Features

Max. Temp.
85°C
Max. Voltage
30V AC/DC
Application
Conventional
Series
76455
Standards
UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
764551627
Zoro #
G505926567
UPC #
-
Country of Origin
Singapore

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.00mm
PC Tail Length
1.40mm

Details

Max. Temp.
85°C
Max. Voltage
30V AC/DC
Application
Conventional
Series
76455
Standards
UL E29179
Material
High Temperature Thermoplastic
Hole Center to Center
1.9 mm
Color
Black
Terminal Type
Through Hole - Compliant Pin
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Current Rating
0.75 A
Contact Finish
Gold Plated
Number of Rows
6
Number of Contacts
96
Material - Metal
High Performance Alloy (HPA)
Flammability
94V-0
Number of Columns
16
Impedance
100Ω
Material - Resin
High Temperature Thermoplastic
Pitch - Mating Interface
1.90mm
Orientation
Vertical
Stackable
No
Plating min - Mating
0.762µm
Current - Maximum per Contact
0.75A
Data Rate
25.0 Gbps
Voltage - Maximum
30V AC (RMS)/DC
Polarized to PCB
No
First Mate / Last Break
No
Circuits (Loaded)
96
Guide to Mating Part
No
Component Type
PCB Header
Material - Plating Mating
Gold
Shielded
No
Keying to Mating Part
None
Temperature Range - Operating
-55° to +85°C
Material - Plating Termination
Tin
Durability (mating cycles max)
200
PCB Retention
None
PCB Locator
No
Product Name
Impact
UL
E29179
Number of Pairs
2
