  11. High Speed / Modular Connectors Impact Bp 3X16 Gl/W Pact Bp 3X16 Gl/W Sn

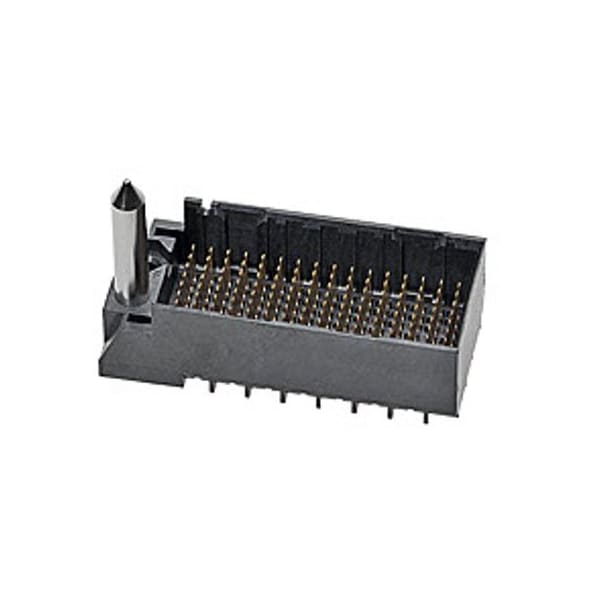

Molex High Speed / Modular Connectors Impact Bp 3X16 Gl/W Pact Bp 3X16 Gl/W Sn 761657608 - main

High Speed / Modular Connectors Impact Bp 3X16 Gl/W Pact Bp 3X16 Gl/W Sn

  • Mfr # 761657608

  • Zoro # G405926568

product price: $15.59
/ea
Sold in multiples of 5 for $77.95

Key Features

Max. Temp.
85°C
Max. Voltage
30V AC/DC
Application
Conventional
Series
76165
Standards
UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
761657608
Zoro #
G405926568
UPC #
-
Country of Origin
Singapore

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
1.40mm
PCB Thickness - Recommended
1.00mm

Details

Max. Temp.
85°C
Max. Voltage
30V AC/DC
Application
Conventional
Series
76165
Standards
UL E29179
Hole Center to Center
1.9 mm
Material
High Temperature Thermoplastic
Color
Black
Terminal Type
Through Hole - Compliant Pin
Current Rating
0.75 A
Contact Finish
Gold Plated
Flammability Rating
UL 94V-0
Number of Contacts
144
Number of Rows
9
Terminal Finish
Tin Plated
Polarized to PCB
Yes
Shielded
No
Component Type
PCB Header
Number of Pairs
3
Material - Resin
High Temperature Thermoplastic
Guide to Mating Part
Yes
Number of Columns
16
PCB Retention
None
First Mate / Last Break
No
Temperature Range - Operating
-55° to +85°C
UL
E29179
Material - Plating Mating
Gold
Impedance
100Ω
Flammability
94V-0
Voltage - Maximum
30V AC (RMS)/DC
Circuits (Loaded)
144
Plating min - Mating
0.762µm
Data Rate
25.0 Gbps
Stackable
No
PCB Locator
No
Keying to Mating Part
None
Orientation
Vertical
Material - Metal
High Performance Alloy (HPA)
Material - Plating Termination
Tin
Durability (mating cycles max)
200
Current - Maximum per Contact
0.75A
Pitch - Mating Interface
1.90mm
Product Name
Impact
