  11. High Speed / Modular Connectors Impact Bp 3X16 Gr/W Pact Bp 3X16 Gr/W Sn

This item is Discontinued.

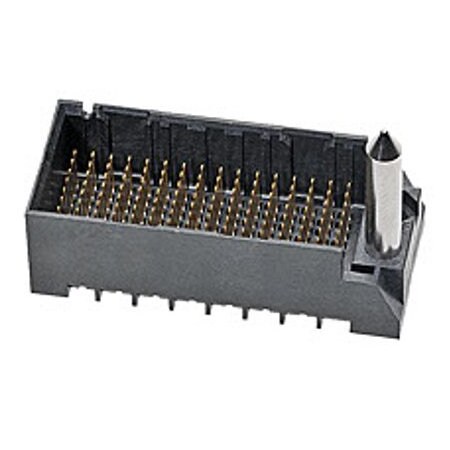

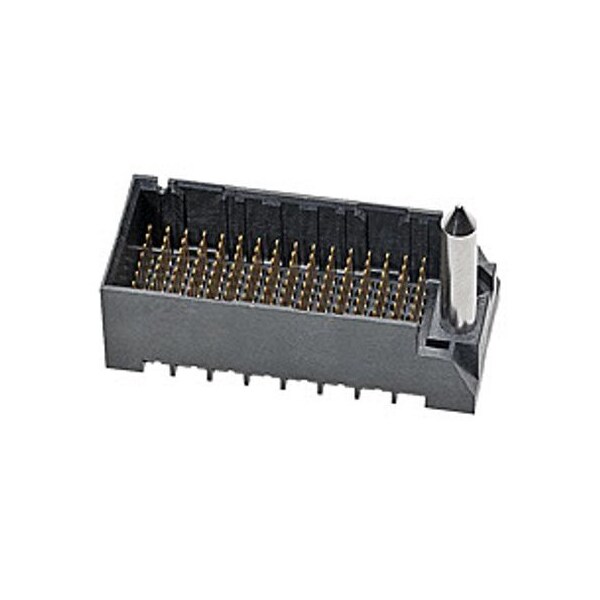

Molex High Speed / Modular Connectors Impact Bp 3X16 Gr/W Pact Bp 3X16 Gr/W Sn 761659605

High Speed / Modular Connectors Impact Bp 3X16 Gr/W Pact Bp 3X16 Gr/W Sn (Discontinued)

  • Mfr # 761659605
  • Zoro # G805926526
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
761659605
Zoro #
G805926526
UPC #
-
Country of Origin
Singapore

Dimensions

Contact Plating Thickness
0.762 µm

Details

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Standards
UL E29179
Terminal Type
Through Hole - Compliant Pin
Color
Black
Hole Center to Center
1.9 mm
Material
High Temperature Thermoplastic
Contact Finish
Gold Plated
Flammability Rating
UL 94V-0
Current Rating
0.75 A
Number of Contacts
144
Number of Rows
9
Terminal Finish
Tin Plated
