  11. High Speed / Modular Connectors Impact Bp 3X6 Dual Wall Sn

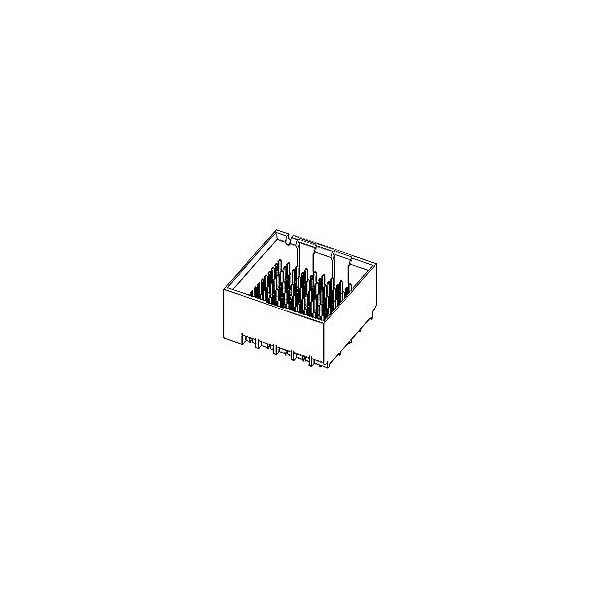

Molex High Speed / Modular Connectors Impact Bp 3X6 Dual Wall Sn 1712921328 - main

High Speed / Modular Connectors Impact Bp 3X6 Dual Wall Sn

  • Mfr # 1712921328

  • Zoro # G305926712

product price: $5.95
/ea
Sold in multiples of 15 for $89.25

Key Features

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Conventional
Series
171292
Standards
UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1712921328
Zoro #
G305926712
UPC #
-
Country of Origin
Singapore

Dimensions

Contact Plating Thickness
0.254 µm
PC Tail Length
1.40mm
PCB Thickness - Recommended
1.00mm

Details

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Conventional
Series
171292
Standards
UL E29179
Color
Black
Material
High Temperature Thermoplastic
Terminal Type
Through Hole - Compliant Pin
Hole Center to Center
1.9 mm
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Number of Rows
9
Current Rating
0.75 A
Contact Finish
Gold Plated
Number of Contacts
54
Component Type
PCB Header
Orientation
Vertical
Shielded
No
Number of Pairs
3
Polarized to PCB
No
Material - Plating Termination
Tin
Plating min - Mating
0.254µm
Number of Columns
6
Voltage - Maximum
30V AC (RMS)/DC
Data Rate
25.0 Gbps
Circuits (Loaded)
54
Guide to Mating Part
No
Stackable
No
Material - Metal
High Performance Alloy (HPA)
Impedance
100Ω
Durability (mating cycles max)
200
Flammability
94V-0
UL
E29179
Material - Resin
High Temperature Thermoplastic
Temperature Range - Operating
-55° to +85°C
PCB Locator
No
Material - Plating Mating
Gold
Pitch - Mating Interface
1.90mm
First Mate / Last Break
No
Product Name
Impact
Current - Maximum per Contact
0.75A
PCB Retention
None
Keying to Mating Part
None
