  11. High Speed / Modular Connectors Impact Bp 4X16 Gl Sn Impact Bp 4X16 Gl Sn

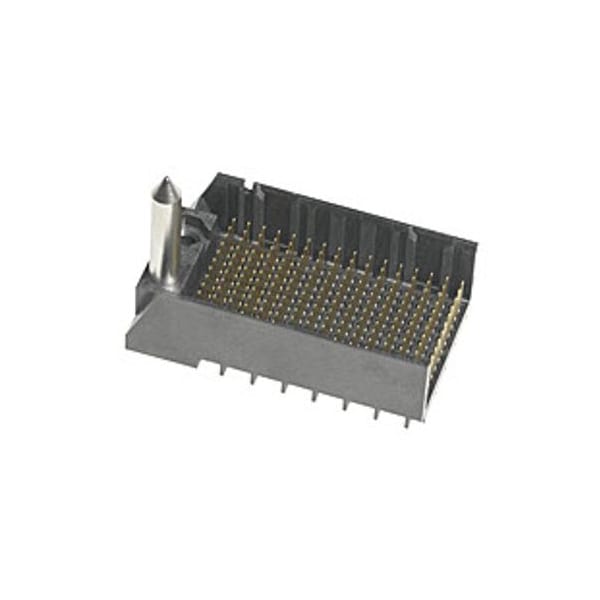

Molex High Speed / Modular Connectors Impact Bp 4X16 Gl Sn Impact Bp 4X16 Gl Sn 761553603 - main

High Speed / Modular Connectors Impact Bp 4X16 Gl Sn Impact Bp 4X16 Gl Sn

  • Mfr # 761553603

  • Zoro # G305926446

product price: $16.15
/ea
Sold in multiples of 4 for $64.60

Key Features

Max. Temp.
85°C
Max. Voltage
30V AC/DC
Application
Conventional
Series
76155
Standards
UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
761553603
Zoro #
G305926446
UPC #
-
Country of Origin
Singapore

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.00mm
PC Tail Length
1.40mm

Details

Max. Temp.
85°C
Max. Voltage
30V AC/DC
Application
Conventional
Series
76155
Standards
UL E29179
Color
Black
Material
High Temperature Thermoplastic
Current Rating
0.75 A
Flammability Rating
UL 94V-0
Hole Center to Center
1.9 mm
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Terminal Type
Through Hole - Compliant Pin
Number of Rows
12
Number of Contacts
192
Stackable
No
Data Rate
25.0 Gbps
Material - Plating Termination
Tin
PCB Locator
No
Guide to Mating Part
Yes
Number of Columns
16
Flammability
94V-0
UL
E29179
Impedance
100Ω
Component Type
PCB Header
First Mate / Last Break
No
Durability (mating cycles max)
200
Temperature Range - Operating
-55° to +85°C
Material - Plating Mating
Gold
Number of Pairs
4
Voltage - Maximum
30V AC (RMS)/DC
Material - Metal
High Performance Alloy (HPA)
Orientation
Vertical
Circuits (Loaded)
192
Shielded
No
Keying to Mating Part
None
Plating min - Mating
0.762µm
Polarized to PCB
Yes
Current - Maximum per Contact
0.75A
Material - Resin
High Temperature Thermoplastic
Pitch - Mating Interface
1.90mm
PCB Retention
Yes
Product Name
Impact
