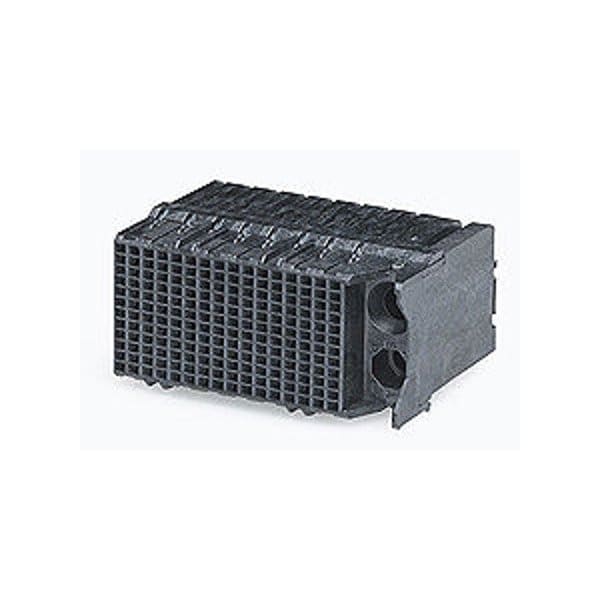

High Speed / Modular Connectors Impact Dc 4X16 Gr Sn Impact Dc 4X16 Gr Sn
Mfr # 761605026
Zoro # G905926433
product price: $27.45
/eaSold in multiples of 3 for $82.35
Key Features
Max. Temp.
85°C
Max. Voltage
30V AC/DC
Standards
UL E29179
Terminal Type
Through Hole - Compliant Pin
Hole Center to Center
1.9 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
761605026
Zoro #
G905926433
UPC #
-
Country of Origin
United States
Dimensions
Contact Plating Thickness
0.762 µm
Details
Max. Temp.
85°C
Max. Voltage
30V AC/DC
Standards
UL E29179
Terminal Type
Through Hole - Compliant Pin
Hole Center to Center
1.9 mm
Material
High Temperature Thermoplastic
Color
Black
Terminal Finish
Tin Plated
Number of Rows
12
Number of Contacts
192
Current Rating
0.75 A
Contact Finish
Gold Plated
Flammability Rating
UL 94V-0
