  11. High Speed / Modular Connectors Impact Ram 3X10 Open Act Ram 3X10 Open S

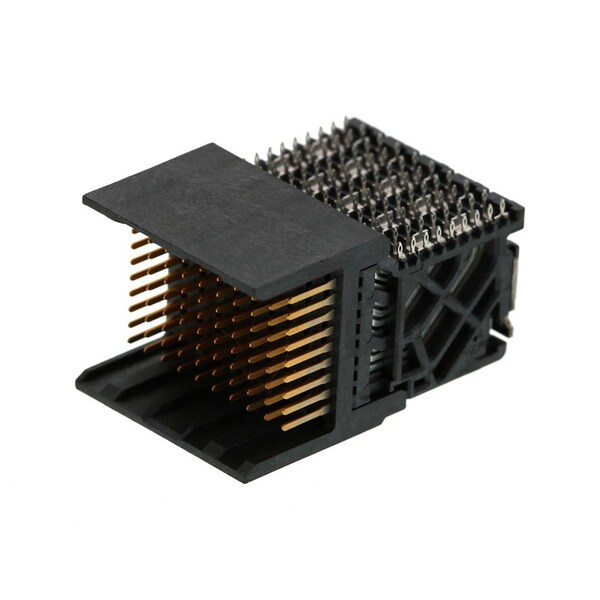

Molex High Speed / Modular Connectors Impact Ram 3X10 Open Act Ram 3X10 Open S 764101107 - main

High Speed / Modular Connectors Impact Ram 3X10 Open Act Ram 3X10 Open S

  • Mfr # 764101107

  • Zoro # G405926704

product price: $15.15
/ea
Sold in multiples of 6 for $90.90

Key Features

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Coplanar
Series
76410
Standards
UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
764101107
Zoro #
G405926704
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
1.20mm
PCB Thickness - Recommended
1.00mm

Details

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Coplanar
Series
76410
Standards
UL E29179
Number of Contacts
90
Hole Center to Center
1.9 mm
Flammability Rating
UL 94V-0
Color
Black
Material
High Temperature Thermoplastic
Number of Rows
9
Current Rating
0.75 A
Terminal Type
Through Hole - Compliant Pin
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Pitch - Mating Interface
1.90mm
Material - Resin
High Temperature Thermoplastic
Number of Columns
10
Keying to Mating Part
None
Material - Metal
High Performance Alloy (HPA)
Durability (mating cycles max)
200
Material - Plating Mating
Gold
Circuits (Loaded)
90
Stackable
No
Flammability
94V-0
Voltage - Maximum
30V AC (RMS)/DC
Polarized to PCB
No
Component Type
PCB Header
Product Name
Impact
Data Rate
25.0 Gbps
Guide to Mating Part
No
Shielded
No
PCB Locator
No
UL
E29179
Number of Pairs
3
Material - Plating Termination
Tin
Current - Maximum per Contact
0.75A
Orientation
Right Angle
PCB Retention
None
Plating min - Mating
0.762µm
Temperature Range - Operating
-55° to +85°C
Impedance
100Ω
First Mate / Last Break
No
