  9. Igrid2.0 Plugtholehdr Ra Gf Nat 14Ckt

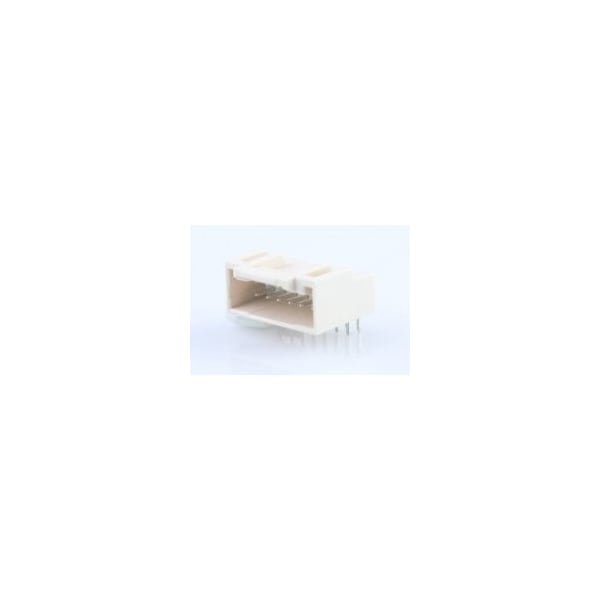

Molex Igrid2.0 Plugtholehdr Ra Gf Nat 14Ckt 2086591440 - main

Igrid2.0 Plugtholehdr Ra Gf Nat 14Ckt

  • Mfr # 2086591440

  • Zoro # G905909849

product price: $1.79
/ea
Sold in multiples of 49 for $87.71

Key Features

Color
Natural
Number of Rows
2
Series
208659
Max. Voltage
250V AC/DC
Application
Signal, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2086591440
Zoro #
G905909849
UPC #
-
Country of Origin
Japan

Dimensions

Contact Plating Thickness
0.102 µm
PCB Thickness - Recommended
1.20mm, 1.60mm
PC Tail Length
3.20mm

Details

Color
Natural
Number of Rows
2
Series
208659
Max. Voltage
250V AC/DC
Application
Signal, Wire-to-Board
Material
Polyamide
Max. Temp.
105°C
Hole Center to Center
2 mm
Terminal Type
Through Hole
Standards
UL E29179
Number of Contacts
14
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Current Rating
2 A
Plating min - Mating
0.102µm
Stackable
No
UL
E29179
Pitch - Mating Interface
2.00mm
Durability (mating cycles max)
30
Circuits (Loaded)
14
Orientation
Right Angle
Voltage - Maximum
250V AC (RMS)/DC
Current - Maximum per Contact
2.0A
Material - Resin
Polyamide
Temperature Range - Operating
-40° to +105°C
PCB Retention
None
Breakaway
No
CSA
152514
Polarized to Mating Part
Yes
Lock to Mating Part
Yes
Glow-Wire Capable
No
PCB Locator
Yes
Product Name
iGrid
Material - Plating Mating
Gold
Keying to Mating Part
Yes
Material - Metal
Brass
First Mate / Last Break
No
Component Type
PCB Header
Polarized to PCB
Yes
