  11. Impel 92 Ohm, 6 Pair Right-Angle Daughtercard, 1.90Mm Pitch, Left Guided, 8 Columns, 96 Circuits,

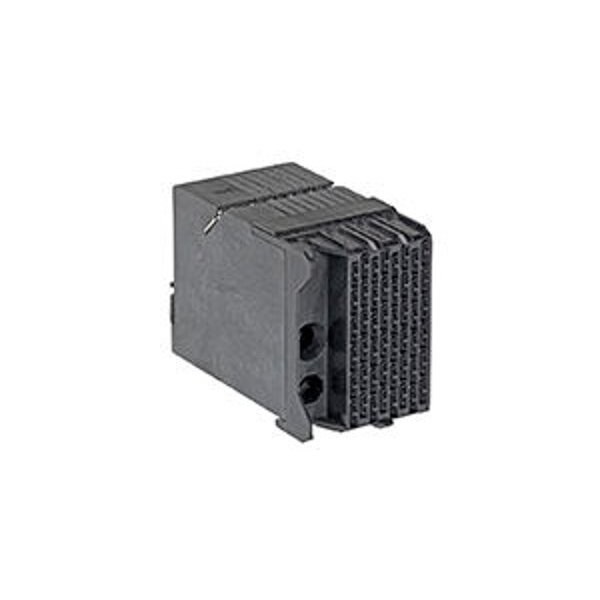

Molex Impel 92 Ohm, 6 Pair Right-Angle Daughtercard, 1.90Mm Pitch, Left Guided, 8 Columns, 96 Circuits, 1714003038 - main

Impel 92 Ohm, 6 Pair Right-Angle Daughtercard, 1.90Mm Pitch, Left Guided, 8 Columns, 96 Circuits,

  • Mfr # 1714003038

  • Zoro # G505964149

product price: $19.59
/ea
Sold in multiples of 4 for $78.36

Key Features

Color
Black
Insulation Material
High Temperature Thermoplastic
Max. Voltage
29.9V AC/DC
Maximum Voltage
29.9 V AC/DC
Application
Coplanar, Daughtercard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1714003038
Zoro #
G505964149
UPC #
-
Country of Origin
Singapore

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
1.30mm
PCB Thickness - Recommended
1.00mm

Details

Item
PCB Receptacle
Color
Black
Insulation Material
High Temperature Thermoplastic
Max. Voltage
29.9V AC/DC
Maximum Voltage
29.9 V AC/DC
Application
Coplanar, Daughtercard
Current
0.75 A
Series
171400
Standards
UL E29179
Minimum Operating Temperature
-55 Degrees
Maximum Operating Temperature
85 Degrees C
UL 94 Flammability Rating
V-0
Material
High Temperature Thermoplastic
Current Rating
0.75 A
Max. Temp.
85°C
Number of Contacts
96
Hole Center to Center
1.9 mm
Number of Rows
12
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Data Rate
40.0 Gbps
PCB Locator
No
Keying to Mating Part
None
Flammability
94V-0
Material - Metal
High Performance Alloy (HPA)
UL
E29179
Guide to Mating Part
Yes
Number of Columns
8
Material - Resin
High Temperature Thermoplastic
PCB Retention
None
Durability (mating cycles max)
200
Voltage - Maximum
29.9V AC (RMS)/DC
Orientation
Right Angle
Shield Type
Full Shield
Current - Maximum per Contact
0.75A
Plating min - Mating
0.762µm
Number of Pairs
6
Temperature Range - Operating
-55° to +85°C
Material - Plating Mating
Gold
Pitch - Mating Interface
1.90mm
Product Name
Impel
Impedance
90Ω
Component Type
PCB Receptacle
Circuits (Loaded)
96
First Mate / Last Break
No
Material - Plating Termination
Tin

Description

Impel 92 Ohm, 6 Pair Right-Angle Daughtercard, 1.90Mm Pitch, Left Guided, 8 Columns, 96 Circuits, Plated Through Hole Dimension 0.36Mm
