  9. L1Nk 250 Header, Vertical, Fully Shrouded, Tin (Sn) Plating, 4 Circuits, With Peg
This item is Discontinued.

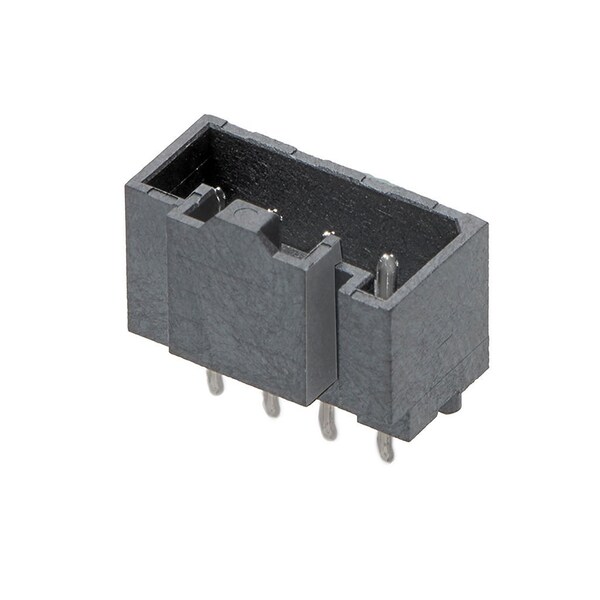

Molex L1Nk 250 Header, Vertical, Fully Shrouded, Tin (Sn) Plating, 4 Circuits, With Peg 2078430004

L1Nk 250 Header, Vertical, Fully Shrouded, Tin (Sn) Plating, 4 Circuits, With Peg (Discontinued)

  • Mfr # 2078430004
  • Zoro # G505910207
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2078430004
Zoro #
G505910207
UPC #
-
Country of Origin
India

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.45mm

Details

Color
Black
Number of Rows
1
Series
207843
Max. Voltage
250V AC/DC
Application
Power, Wire-to-Board
Hole Center to Center
2.5 mm
Terminal Type
Through Hole
Material
Liquid Crystal Polymer
Features
Glow-Wire Capable
Standards
CSA Certified
Max. Temp.
105°C
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Contact Finish
Tin Plated
Current Rating
6.5 A
Number of Contacts
4
Material - Resin
Liquid Crystal Polymer
Flammability
94V-0
UL
E29179
Polarized to PCB
Yes
Material - Metal
Brass
Breakaway
No
First Mate / Last Break
No
Material - Plating Mating
Tin
Orientation
Vertical
PCB Locator
No
Glow-Wire Capable
Yes
Shrouded
Fully
Lock to Mating Part
Yes
Guide to Mating Part
No
Product Name
KK Plus
Stackable
No
CSA
152514
Voltage - Maximum
250V AC (RMS)/DC
Circuits (Loaded)
4
PCB Retention
None
Durability (mating cycles max)
25
Material - Plating Termination
Tin
Pitch - Mating Interface
2.50mm
Component Type
PCB Header
Polarized to Mating Part
Yes
Current - Maximum per Contact
6.5A
Temperature Range - Operating
-40° to +105°C
Keying to Mating Part
None
