  5. L1Nk 250 Header, Vertical, Fully Shrouded, Tin (Sn) Plating, 7 Circuits, With Peg

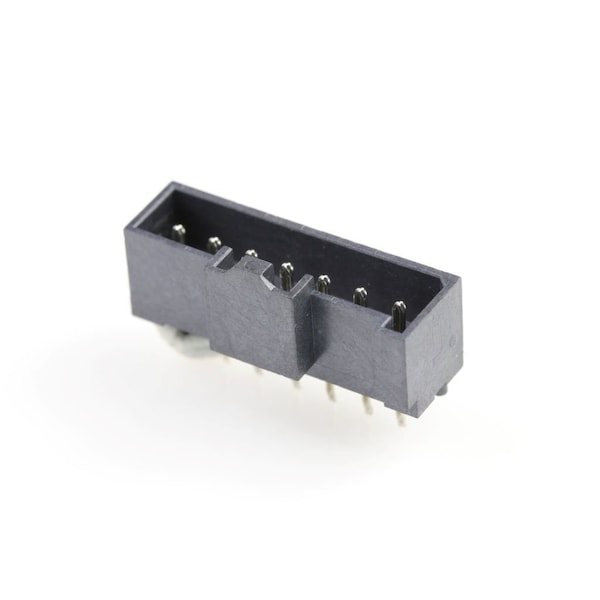

Molex L1Nk 250 Header, Vertical, Fully Shrouded, Tin (Sn) Plating, 7 Circuits, With Peg 2078430007 - main

L1Nk 250 Header, Vertical, Fully Shrouded, Tin (Sn) Plating, 7 Circuits, With Peg

  • Mfr # 2078430007

  • Zoro # G405909974

product price:  $0.73
/ea
Sold in multiples of 150 for $109.50

Key Features

Color
Black
Number of Rows
1
Series
207843
Max. Voltage
250V AC/DC
Application
Power, Wire-to-Board
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2078430007
Zoro #
G405909974
UPC #
-
Country of Origin
India

Dimensions

PC Tail Length
3.45mm
PCB Thickness - Recommended
1.60mm

Details

Color
Black
Number of Rows
1
Series
207843
Max. Voltage
250V AC/DC
Application
Power, Wire-to-Board
Terminal Type
Through Hole
Hole Center to Center
2.5 mm
Features
Glow-Wire Capable
Max. Temp.
105°C
Standards
CSA Certified
Material
Liquid Crystal Polymer
Flammability Rating
UL 94V-0
Number of Contacts
7
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
Current Rating
6.5 A
Flammability
94V-0
Material - Plating Mating
Tin
CSA
152514
PCB Locator
No
Pitch - Mating Interface
2.50mm
Material - Metal
Brass
Guide to Mating Part
No
Durability (mating cycles max)
25
Voltage - Maximum
250V AC (RMS)/DC
Keying to Mating Part
None
Material - Resin
Liquid Crystal Polymer
UL
E29179
Stackable
No
Shrouded
Fully
PCB Retention
None
Orientation
Vertical
Glow-Wire Capable
Yes
Circuits (Loaded)
7
Product Name
KK Plus
Lock to Mating Part
Yes
Temperature Range - Operating
-40° to +105°C
First Mate / Last Break
No
Polarized to Mating Part
Yes
Polarized to PCB
Yes
Component Type
PCB Header
Breakaway
No
Material - Plating Termination
Tin
Current - Maximum per Contact
6.5A
