Shop MOLEX

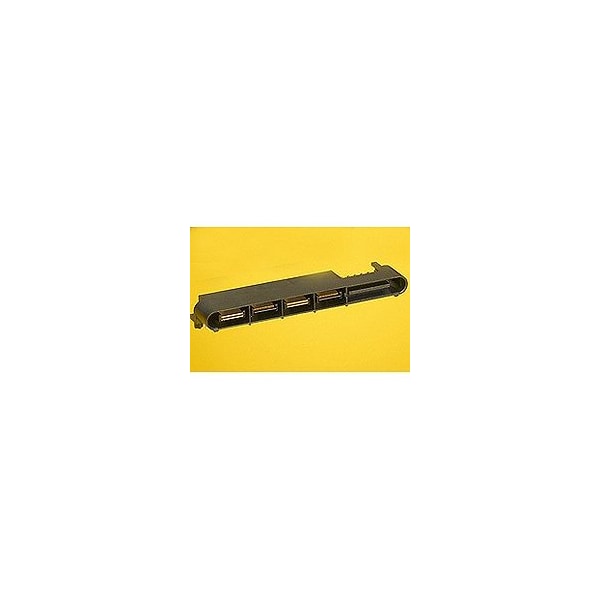

LPH Plug Assy RtAn 06 Pwr 16 Sig P and G

  • Mfr # 45985-6422
  • Zoro # G000415726
product price:
$
11.15
/ea
Sold in multiples of 7 for $78.05

Key Features

Color
Black
Insulation Material
High Temperature Thermoplastic
Max. Voltage
250V AC, 250V DC
Maximum Voltage
250 V AC/DC
Application
Board-to-Board, Power
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
45985-6422
Zoro #
G000415726
UPC #
822350778657
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm

Details

Item
Power Connector
Color
Black
Insulation Material
High Temperature Thermoplastic
Max. Voltage
250V AC, 250V DC
Maximum Voltage
250 V AC/DC
Application
Board-to-Board, Power
Current
27 A
Series
45985
Standards
CSA Certified; UL E29179
Maximum Operating Temperature
260 Degrees C
UL 94 Flammability Rating
V-0
Material
High Temperature Thermoplastic
Max. Temp.
260°C
Terminal Type
Through Hole
Features
Surface Mount Compatible
Hole Center to Center
1.27 mm, 12 mm
Sub-Category
PCB Headers
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Number of Rows
2
Current Rating
27 A
Number of Contacts
22
Contact Finish
Gold Plated
