Shop MOLEX

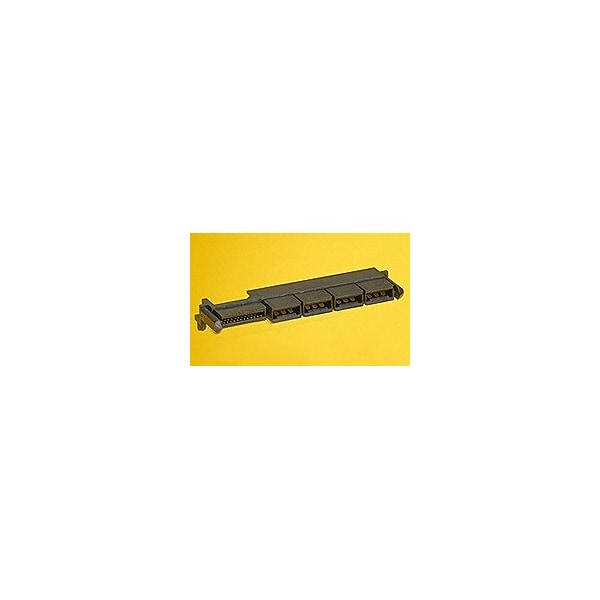

LPH Rcpt Assy RtAn 04 Pwr 16 Sig Short

  • Mfr # 45984-4123

  • Zoro # G7921773

product price:  $11.19
/ea
Sold in multiples of 8 for $89.52

Key Features

Color
Black
Insulation Material
High Temperature Thermoplastic
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Board-to-Board, Power
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
45984-4123
Zoro #
G7921773
UPC #
822350773270
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm

Details

Item
Power Connector
Color
Black
Insulation Material
High Temperature Thermoplastic
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Board-to-Board, Power
Current
30 A
Series
45984
Standards
CSA Certified; UL E29179
Maximum Operating Temperature
260 Degrees C
UL 94 Flammability Rating
V-0
Hole Center to Center
1.27 mm, 12 mm
Features
Surface Mount Compatible
Material
High Temperature Thermoplastic
Terminal Type
Through Hole
Sub-Category
PCB Receptacles
Max. Temp.
260°C
Contact Finish
Gold Plated
Number of Contacts
20
Number of Rows
2
Current Rating
30 A
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
